• Reid Porta-Davit Quantum Winched WLL:500kg

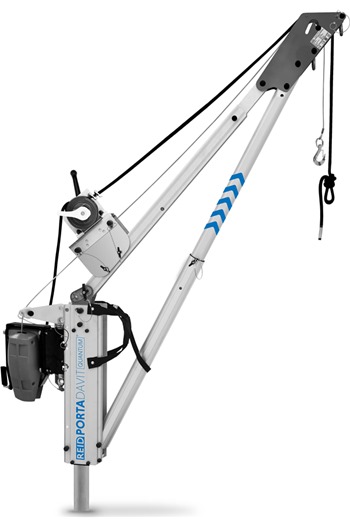

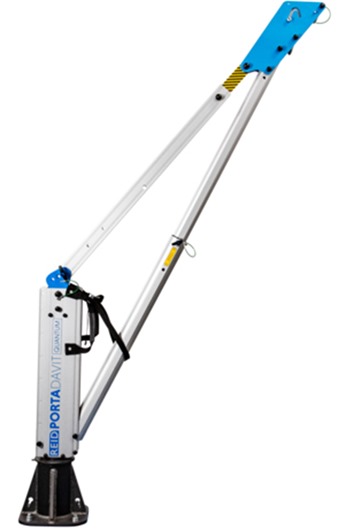

  The Porta-Davit QUANTUM is a rapidly deployable, lightweight solution to the heavy lifting and lowering of goods and personnel

  Weighing 23kg, it can be manually opearted by just one person while maintaining a lifting capacity of up to 500kg

  Manual or electric chain hoists can be hooked from the shackles on the head of the PDQ

  Manual winches can be mounted onto the davit column or backstay, with cables feeding through sheaves to the front of the davit

  We offer a wide range of winch brackets for common goods and personnel winches and retrieval fall arrest devices. The winch brackets can be attached to the column and backstay of the PortaDavit QUANTUM to support the application required - please contact us for details

  Can be supplied with or without STMG0500VS Galvanised 65mm dia Top Mount Davit Socket

  Key features:-

  • EN795:2012 & ATEX Certified
  • Fall arrest capacity - 1 user
  • Personnel capacity up to 250kg and goods capacity up to 500kg
  • Three radius adjustment points
  • Double sheave head for Winches and SRL's
  • Double shackle head for easy attachment of accessories
  • Ease of assembly with the use of just one pin, no tools required
  • Can be rotated 360° under a full load
  • Clean, anodised finish for increased corrosion resistance
  • Designed with a universal kingpin suitable for use with the Reid 65mm range of sockets
  • Product code: PDQ2W
  • Max height of lift: 1957mm
  • Max radius: 1500mm
  • Davit weight: 23kg

  *** Winches, brackets and accessories sold separately ***



• Specifications

• Additional Information

  Data Sheet
• Price Breaks
• Reid Porta-Davit Quantum Winched WLL:500kg (Net Weight Per Item: 23.00kg):

  Quantity:

  1+

  (£2,483.08 inc VAT)
  Reid Porta-Davit Quantum Winched WLL:500kg c/w Top Mount Socket (Net Weight Per Item: 32.00kg):

  Quantity:

  1+

  (£2,842.10 inc VAT)
