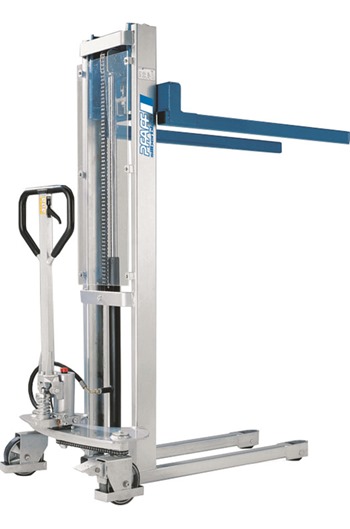

Pfaff HV1008 1000kg Hydraulic Hand Stacker 900mm lift

More From This Brand

Add to New List

• Product Info

• Pfaff HV1008 1000kg Hydraulic Hand Stacker 900mm lift

  The Pfaff HV1008 is a manual drive and manual lifting Hydraulic Hand Stacker

  Ideal for the occasional, internal application of stacking and transporting of palletised goods

  Features:-

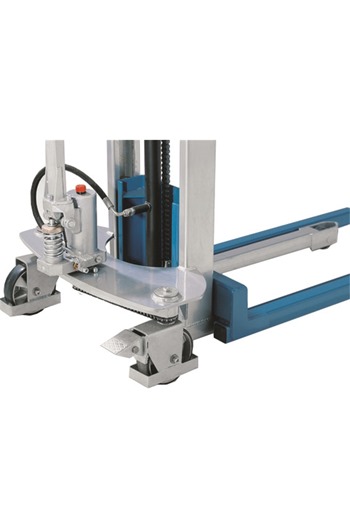

  • Ergonomic safety control handle for one-hand operation of lifting, driving and lowering
  • Easy handling due to forced steering rollers
  • Lowering speed can be finely metered for sensitive lowering of the load
  • Single-acting hand pump with increased lift per handle stroke
  • Quick-lift for loads up to 100kg
  • Robust mast construction with hard chronium plated piston
  • Steering roller with brake for safe parking of the Stacker

  Model: HV1008

  Lifting capacity: 1000kg

  Closed mast height: 1300mm

  Free lift: 810mm

  Mast height extended: 1300mm

  Fork height (maximum): 900mm

  Fork height (lowered): 90mm

  Total unit length: 1675mm

  Total unit width: 765mm

  Usuable fork length: 1122mm

  Floor/ground clearance: 25mm

  Lift per one crank rotation with/without load: 17/50mm

  Turning radius: 1445mm

  Weight: 179kg

  DELIVERY IS 3-4 WORKING WEEKS FROM DATE OF ORDER

• Specifications

• Additional Information

  Data sheet Dimensions
• Price Breaks
• Pfaff HV1008 1000kg Hydraulic Hand Stacker 900mm lift (Net Weight Per Item: 179.00kg):

  Quantity:

  1+

  (£1,829.70 inc VAT)
