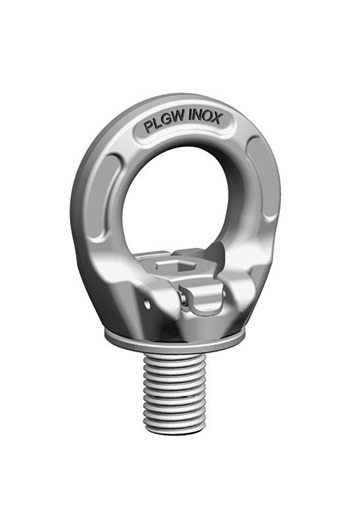

Pewag PLGWI2 Supreme Stainless Steel Lifting Point

More From This Brand

Add to New List

• Product Info

• Pewag PLGWI2 Supreme Stainless Steel Lifting Point

  The PLGWI is a corrosion resistant stainless steel version of the PLGW eyebolt which offers all the tried-and-tested Pewag advantages: versatility when it comes to areas of application, accurately fitted measurements, optimised load capacities and unsurpassed ease-of-use. But the PLGWI offers even more than that:-

  The eyebolt is 360° rotatable, comes with an interchangeable special screw that is 100% crack-tested and marked with the load capacity and the thread size! An integrated sleeve protects the surface of the load. The batch number displayed on all load-bearing parts such as the eye and screws as well as the serial number make identification, traceability and performance of mandatory, regular inspections simpler than ever

  This lifting point can be very simply tightened by hand, then aligned in the load direction – a system that is ideally suited for frequent assembly/disassembly applications

  However, if the lifting point is to be utilised in a more permanent application and / or is subject to vibrations during use, the torque settings in the load table must be observed

  The supreme model is tool-free assembly and disassembly Lifting Point.  When the latch is open, it is held open with a patented spring and is rotatable.  When the latch is closed, it is held in place with the patented spring and is not rotatable which means it can be mounted and removed

  This lifting point can be mounted hand tight using a standard Allen key then aligned in the load direction

  The “Supreme” version, the elements of the latching system are made from corrosion resistant material

  Each eyebolt comes with an operating manual that contains detailed information on usage as well as a load capacity table categorised by lifting method, number of legs and angle of inclination, for easy reference whenever you need it

  Thread size: 20mm



• Specifications

• Additional Information

  Data Sheet
• Price Breaks
• Pewag PLGWI2 Supreme Stainless Steel Lifting Point (Net Weight Per Item: 0.60kg):

  Quantity:

  1 - 3

  (£173.34 inc VAT)

  Quantity:

  4 - 7

  (£169.01 inc VAT)

  Quantity:

  8+

  (£164.67 inc VAT)
