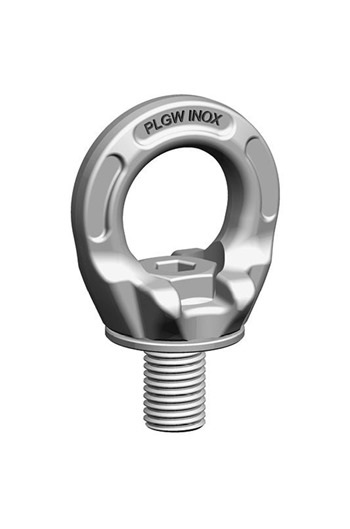

Pewag PLGWI2/B Basic Stainless Steel Lifting Point

More From This Brand

Add to New List

• Product Info

• Pewag PLGWI2/B Basic Stainless Steel Lifting Point

  The PLGWI is a corrosion resistant stainless steel version of the PLGW eyebolt which offers all the tried-and-tested Pewag advantages: versatility when it comes to areas of application, accurately fitted measurements, optimised load capacities and unsurpassed ease-of-use. But the PLGWI offers even more than that:-

  The eyebolt is 360° rotatable, comes with an interchangeable special screw that is 100% crack-tested and marked with the load capacity and the thread size! An integrated sleeve protects the surface of the load. The batch number displayed on all load-bearing parts such as the eye and screws as well as the serial number make identification, traceability and performance of mandatory, regular inspections simpler than ever

  This lifting point can be very simply tightened by hand, then aligned in the load direction – a system that is ideally suited for frequent assembly/disassembly applications

  However, if the lifting point is to be utilised in a more permanent application and / or is subject to vibrations during use, the torque settings in the load table must be observed

  The Pewag PLGWI Basic. Offering the same benefits as the Pewag PLGWI Supreme in terms of measurement, load capacity and application, the Pewag PLGWI Basic differs only when it comes to assembly

  This lifting point can be mounted hand tight using a standard Allen key then aligned in the load direction

  The Basic version is made exclusively from Duplex, with ring, screw and sleeve manufactured from 1.4462

  Each eyebolt comes with an operating manual that contains detailed information on usage as well as a load capacity table categorised by lifting method, number of legs and angle of inclination, for easy reference whenever you need it

  Available sizes: 12mm, 16mm and 20mm

• Specifications

• Additional Information

  Data Sheet
• Price Breaks
• Pewag PLGWI2/B Basic Stainless Steel Lifting Point M20 - 2T (Net Weight Per Item: 0.60kg):

  Quantity:

  1 - 3

  (£161.94 inc VAT)

  Quantity:

  4 - 7

  (£157.89 inc VAT)

  Quantity:

  8+

  (£153.84 inc VAT)
  Pewag PLGWI2/B Basic Stainless Steel Lifting Point M12 - 0.5T (Net Weight Per Item: 0.20kg):

  Quantity:

  1 - 3

  (£106.74 inc VAT)

  Quantity:

  4 - 7

  (£104.07 inc VAT)

  Quantity:

  8+

  (£101.40 inc VAT)
  Pewag PLGWI2/B Basic Stainless Steel Lifting Point M16 - 1T (Net Weight Per Item: 0.40kg):

  Quantity:

  1 - 3

  (£121.50 inc VAT)

  Quantity:

  4 - 7

  (£118.46 inc VAT)

  Quantity:

  8+

  (£115.43 inc VAT)
