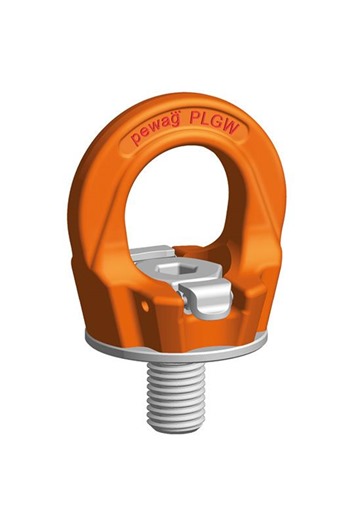

Pewag PLGW Prolift Gamma Supreme Lifting Point M10 to M48

More From This Brand

Add to New List

• Product Info

• The PLGW lifting point has been developed and manufactured according to the very latest standards

  This patented system has proven itself from the beginning and promises unsurpassed ease of use

  The eyebolt is 360° rotatable, comes with an interchangeable special screw that is 100% crack tested and finished with a chrome VI free corrosion protection

  The supreme model is tool-free assembly and disassembly Lifting Point.  When the latch is open, it is held open with a patented spring and is rotatable.  When the latch is closed, it is held in place with the patented spring and is not rotatable which means it can be mounted and removed

  This lifting point can be mounted hand tight using a standard Allen key then aligned in the load direction. However, if the lifting point is to be utilised in a more permanent application the torque settings in the load table must be observed

  Each lifting point is marked with an individual serial number, the load capacity and the thread size. A batch number is also displayed on all load bearing parts such as the eye and screw. All of these factors make identification and traceability for mandatory regular inspections easier than ever

  Metric thread sizes available: M10, M12, M16, M20, M24, M30, M36, M42, M48



• Specifications

• Additional Information

  Dimensions Loading Chart
• Price Breaks
• Pewag PLGW Supreme M10 Gamma Lifting Point 500kg (Net Weight Per Item: 0.21kg):

  Quantity:

  1 - 3

  (£79.74 inc VAT)

  Quantity:

  4 - 7

  (£77.75 inc VAT)

  Quantity:

  8+

  (£75.75 inc VAT)
  Pewag PLGW Supreme M12 Gamma Lifting Point 700kg (Net Weight Per Item: 0.32kg):

  Quantity:

  1 - 3

  (£81.18 inc VAT)

  Quantity:

  4 - 7

  (£79.15 inc VAT)

  Quantity:

  8+

  (£77.12 inc VAT)
  Pewag PLGW Supreme M16 Gamma Lifting Point 1500kg (Net Weight Per Item: 0.48kg):

  Quantity:

  1 - 3

  (£90.18 inc VAT)

  Quantity:

  4 - 7

  (£87.93 inc VAT)

  Quantity:

  8+

  (£85.67 inc VAT)
  Pewag PLGW Supreme M20 Gamma Lifting Point 2300kg (Net Weight Per Item: 0.58kg):

  Quantity:

  1 - 3

  (£99.00 inc VAT)

  Quantity:

  4 - 7

  (£96.53 inc VAT)

  Quantity:

  8+

  (£94.05 inc VAT)
  Pewag PLGW Supreme M24 Gamma Lifting Point 3200kg (Net Weight Per Item: 1.10kg):

  Quantity:

  1 - 3

  (£122.46 inc VAT)

  Quantity:

  4 - 7

  (£119.40 inc VAT)

  Quantity:

  8+

  (£116.34 inc VAT)
  Pewag PLGW Supreme M30 Gamma Lifting Point 4900kg (Net Weight Per Item: 2.20kg):

  Quantity:

  1 - 3

  (£175.14 inc VAT)

  Quantity:

  4 - 7

  (£170.76 inc VAT)

  Quantity:

  8+

  (£166.38 inc VAT)
  Pewag PLGW Supreme M36 Gamma Lifting Point 7000kg (Net Weight Per Item: 3.80kg):

  Quantity:

  1 - 3

  (£227.58 inc VAT)

  Quantity:

  4 - 7

  (£221.89 inc VAT)

  Quantity:

  8+

  (£216.20 inc VAT)
  Pewag PLGW Supreme M42 Gamma Lifting Point 9000kg (Net Weight Per Item: 5.70kg):

  Quantity:

  1 - 3

  (£297.42 inc VAT)

  Quantity:

  4 - 7

  (£289.98 inc VAT)

  Quantity:

  8+

  (£282.55 inc VAT)
  Pewag PLGW Supreme M48 Gamma Lifting Point 12000kg (Net Weight Per Item: 8.90kg):

  Quantity:

  1 - 3

  (£372.90 inc VAT)

  Quantity:

  4 - 7

  (£363.58 inc VAT)

  Quantity:

  8+

  (£354.26 inc VAT)
