PETZL P74TL Rollclip Triact Lock Pulley Carabiner

More From This Brand

Add to New List

• Product Info

• P74TL ROLLCLIP Pulley Carabiner

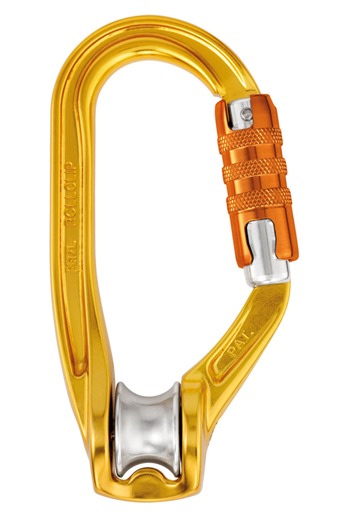

  The Petzl P74TL Rollclip Carabiner is both a pulley and a Carabiner

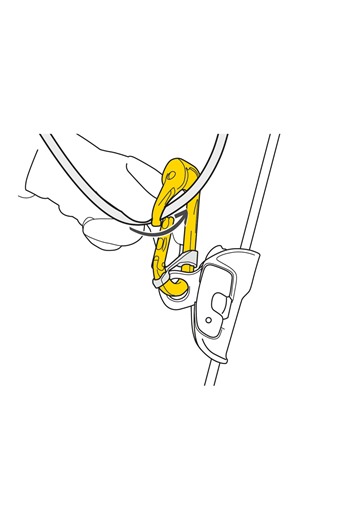

  The Rollclip is also very useful in a 3:1 tensioning system, simply redirect the control rope without the need for an additional pulley

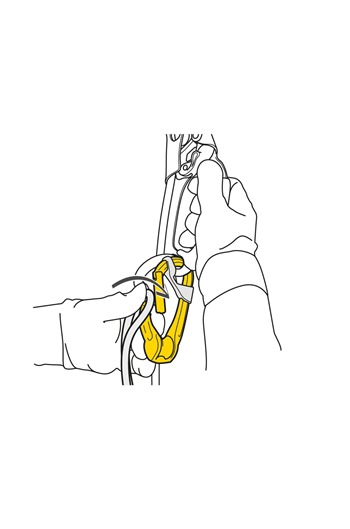

  Can be used to minimize friction on the work rope or to install redirects

  Fitted witht the TRIACT-LOCK locking system

  Features:-

  • Keylock system prevents any accidental snagging of the carabiner when putting the pulling in place
  • Gate opening on the pulley side facilitates installation of the rope when the pulley is fixed to the anchor
  • may be used with a CAPTIV positioning bar to favor loading of the carabiner along its major axis and to limit the risk of it flipping
  • Sheave mounted on sealed ball bearings for excellent efiieciency
  • Min rope diameter: 7mm
  • Max rope diameter: 13mm
  • Sheave diameter: 18mm
  • Maximum working load: 2 x 2 = 4 kN
  • Efficiency: 85%
  • Major axis strength: 20 kN
  • Minor axis strength: 8 kN
  • Gate opening: 22mm
  • Certification: CE EN 362, CE EN 12278, EAC
• Specifications
• Brand Petzl

  Suitable For Connecting Harness to Lanyards or Anchor Points

  Product Weight 0.20kg

  Product Colour Gold / Yellow Finish

  Product Finish Metallic

  Material Aluminium

  Length 115mm

  Width 51mm

  W.L.L. .

  Shape D-Shape

  Lock Type Triple Lock

  Lock Opening 18mm

  Available for Hire No

  CE / UKCA Marked Yes

  Conforms to EN Standard CE EN 362, CE EN 12278, EAC

  Certification Supplied Declaration of Conformity

  Custom Made Product No

  Included in Return Policy Yes

  Third Party Supplied Yes

  Additional Information

  Technical Information UKCA Declaration of Conformity EU Declaration of Conformity PPE Inspection Procedure PPE Checklist Maintaining Equipment
