Multi-Purpose Tripod & Gantry c/w Rescue Winch

More From This Brand

Add to New List

• Product Info

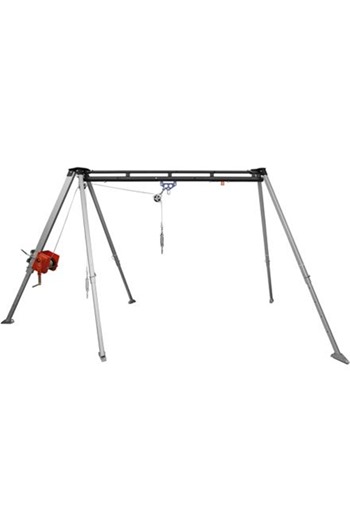

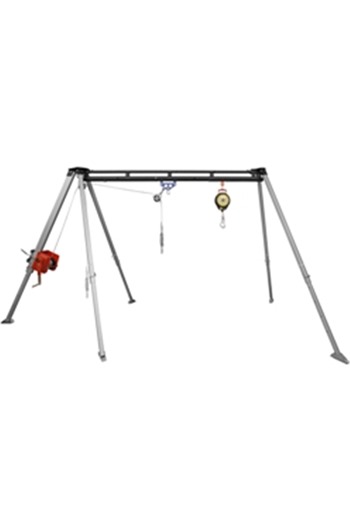

• TM12 Aluminium Multi-Purpose Tripod & Gantry, Comes With 30mtr or 50mtr Rescue Winch (RUP503)

  **Includes**
  Main Tripod, Top Beam & 2 Legged Support.
  1 x Double Trolley (on Beam)
  1 x Single trolley (on Beam)
  1 x 1000kg Alloy Bow Shackle

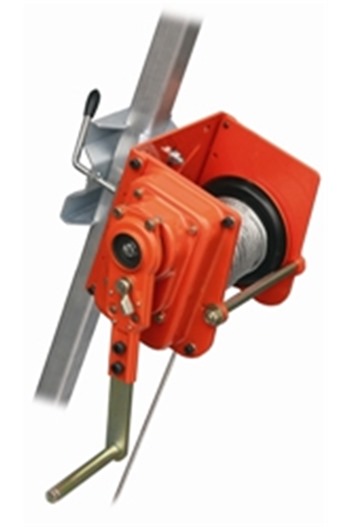

  1 x RUP503 30mtr or 50mtr Rescue Winch c/w Pulley

  Only one pulley supplied, second pulley is additional

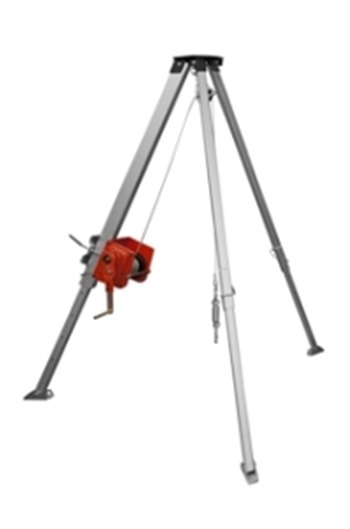

  * Can be used in Complete Form, with Gantry or On its own for confined Space working for Man Riding upto 200kg (not for lifting purposes)

  * Lightweight & Portable as the TM12 Breaks Down into 3 Key Components

  *Fully Adjustable In Both Length & Height

  * Gripping Thorns on Tripod Feet for Improved Traction On Slippery Surfaces.

  *Safety Locking Pins to Prevent movement of Beam Trolley

  *Use with P10R Rescue Harness (Supplied Separately)

  EN795 Class B

  * Rescue winch available in lengths of 30mtr and 50mtr.
  * 6,3 mm galvanised cable and a braking system
  (EN 1496 Class B)

  TM12 Shipping box dimensions Length 2540mm x width 330mm x height 340mm

• Specifications

• Additional Information

  RUP503 Instruction Manual TM12 Instruction Manual 1 TM12 Instruction Manual 2 TM12 Instruction Manual 3 TM12 Instruction Manual 4
• Price Breaks
• 30mtr Winch & TM12 Tripod (Net Weight Per Item: 78.00kg):

  Quantity:

  1+

  (£3,154.58 inc VAT)
  50mtr Winch & TM12 Tripod (Net Weight Per Item: 78.00kg):

  Quantity:

  1+

  (£3,203.41 inc VAT)
