Muba 600kg Capacity Beam Lifter

More From This Brand

Add to New List

• Product Info

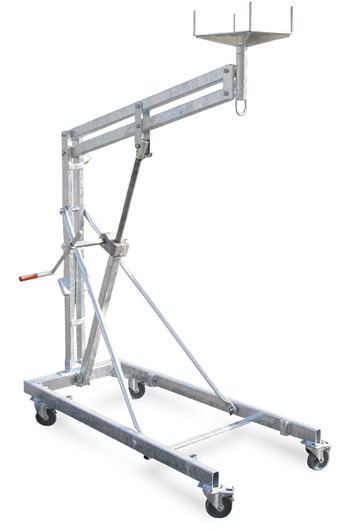

• Muba 600kg Capacity Beam Lifter

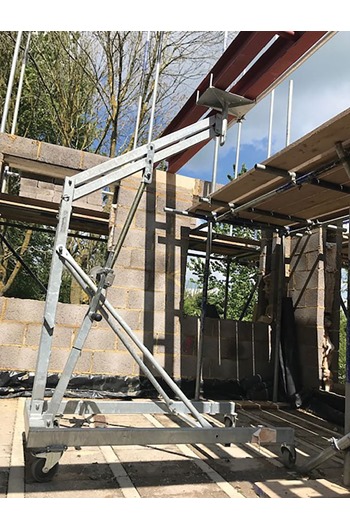

  The Unique Beam Lifter from Muba has been designed with the Tool Hire Industry in mind. Compact, Robust and unlike its competitors to date the Beam Lifter has no lifting cables. Using a simple screw mechanism like an Acrow Prop by manually winding the handle the beam can be lifted and lowered into position with accuracy and ease

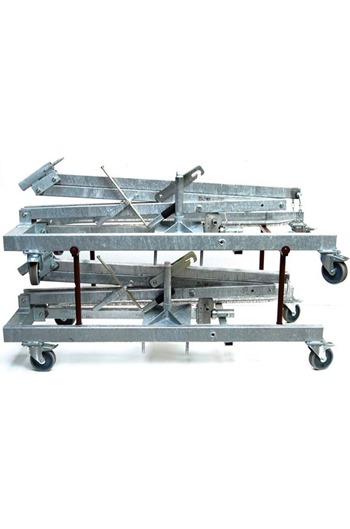

  A single Beam Lifter has a lifting capacity of 600kg and will lift up to a maximum height of 3 Metres, two Beam Lifters together has a lifting capacity of 900kg. The Beam Lifter will fit through gaps of up to 73cm (29 Inch), is stackable when folded down and will fit in to the boot of most estate cars

  Specifications:-

  • Maximum lifting capacity: 600kg
  • Maximum lifting capacity (2 Beam Lifters): 900kg
  • Maximum lifting height: 3mtr
  • Minimum lifting height: 1.1mtr
  • Lifting mechanism: Screw thread
  • Lifting operation: Handle
  • Width (fixed): 73cm
  • Length (fixed): 157cm
  • Height (folded down): 60cm
  • Height (erected): 164cm (rear mast)

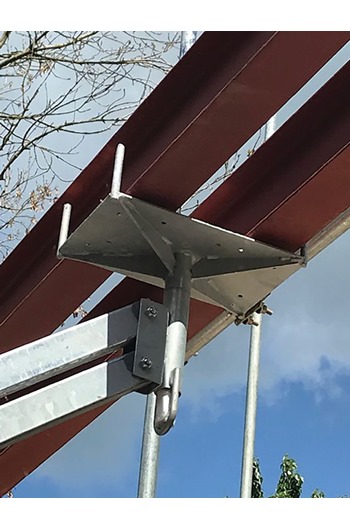

  • Lifting platform (detachable): 360degree rotation
  • Lifting platform size: 36cm x 22cm x 11cm
  • Chassis: Galvanised steel
  • Lifting hook: Included
  • Wheels: Locking castors
  • Weight: 86kg
• Specifications

• Additional Information

  Data Sheet Instruction Manual Declaration of Conformity
• Price Breaks
• Muba 600kg Capacity Beam Lifter (Net Weight Per Item: 86.00kg):

  Quantity:

  1+

  (£1,671.17 inc VAT)
