Kratos Safety 7ft Rescue Tripod & 20mtr Fall Arrester with Rescue Winch

More From This Brand

Add to New List

• Product Info

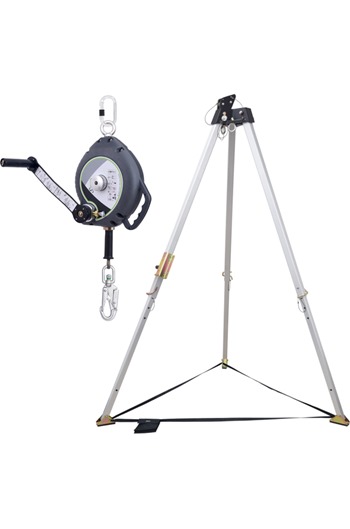

• Kratos 7ft Rescue Tripod & 20mtr Fall Arrester with Rescue Winch

  This Tripod and Winch Kit comprises of the following items:-

  Kratos FA6000100 7ft Rescue Tripod

  For access in confined spaces

  Adjustable height: 1.15mtr to 2.15mtr

  Wheelbase: 1.08mtr to 1.62mtr

  Maximum Load Capacity: 500kg under head / 250kg on leg

  Weight: 14.3kg

  Conforms to: EN795:2012 type B, ATEX Directive 2014/34/EU, Machinery Directive, EN 1808

  Features:-

  • Two mounted pulleys at the head of the Tripod in the extension of the main leg for passing a cable
  • Two auxiliary eye bolts as attachment points
  • Aluminum alloy cast head, legs in aluminium
  • Steel support-shoes provided with rubber sole to increase friction and impart more stability
  • Strength of anchorage point greater than 12 kN
  • Tripod is provided with inbuilt fixture for attaching Kratos winches FA6000320, FA6000330, FA6002320, FA6002320R
  • Supplied with tripod bag

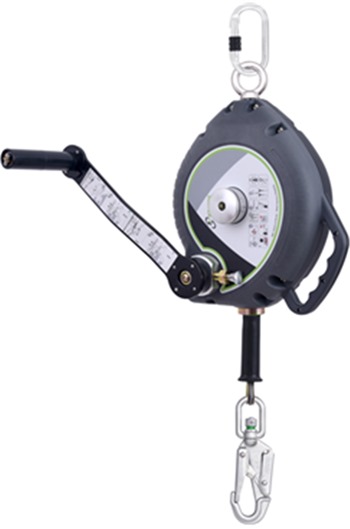

  Kratos FA2040120 20mtr Fall Arrester with Rescue Winch

  OLYMPE cable, retractable Fall Arrester 20mtr with Integrated Rescue Winch

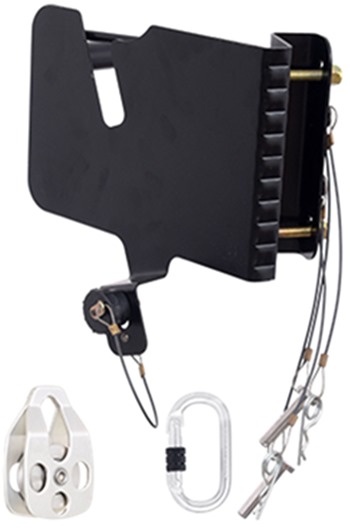

  Comes with adapation kit to connect to Tripod

  Length: 20mtrs

  Approved for a user with a max. weight of 140kg in vertical use

  Galvanised cable diameter: 4.5mm

  Conforms to: EN360:2002, EN1496:2017 class B, ATEX Directive 2014/34/EU

• Specifications
• Brand Kratos Safety

  Certification Supplied ATEX Directive 2014/34/EU & Machinery Directive

  Conforms to EN Standard EN 795:2012

  Country of Origin France

  Effective Working Length (EWL) Winch - 20mtr

  Height Adjustable Tripod - 1.15mtr to 2.15mtr

  Product Material Aluminium Alloy

  Maximum User Weight Winch - 140kg

  Product Colour Metallic Silver & Black

  Product Weight 26.7kg

  W.L.L. Tripod - 500kg Under Tripod Head

  W.L.L. Winch - 140kg

  Additional Information

  Fall Arrester Data Sheet Fall Arrester Instructions Tripod Data Sheet Tripod Instruction Manual
• Price Breaks
• Kratos Safety 7ft Rescue Tripod & 20mtr Fall Arrester with Rescue Winch (Net Weight Per Item: 26.70kg):

  Quantity:

  1+

  (£1,811.98 inc VAT)
