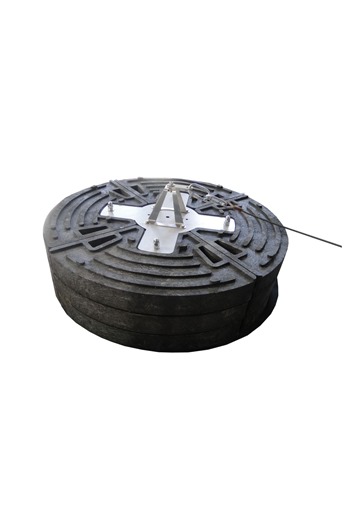

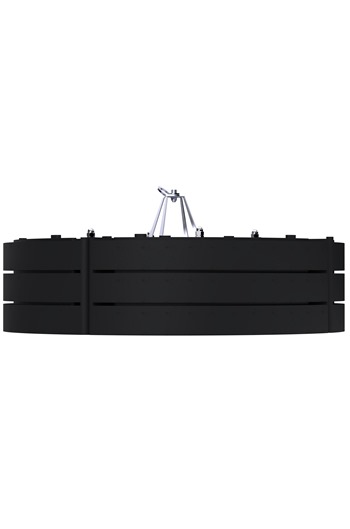

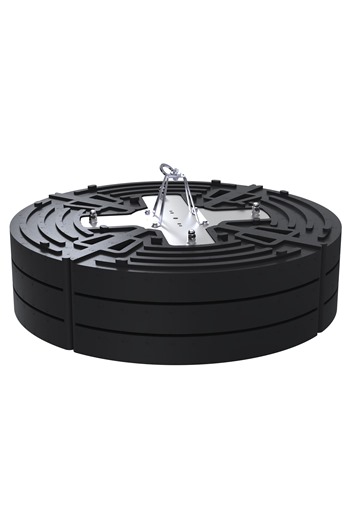

• The IM300 is a highly versatile, portable anchor device specifically engineered for use in fall protection and restraint systems. Designed with safety, ease of transport, and simplicity in mind, the IM300 is the ideal solution for work on flat roofs where permanent or structural anchor points are not available

  Whether you're performing maintenance, inspection, or installation tasks, the IM300 provides a secure, temporary anchorage point that helps ensure the safety of personnel working at height

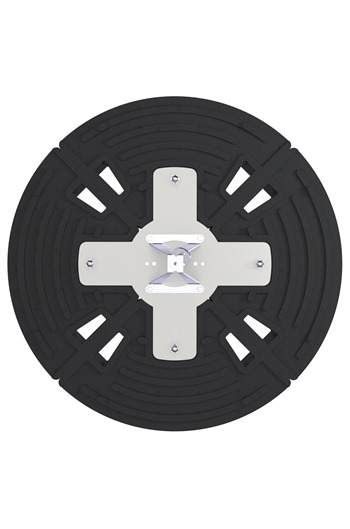

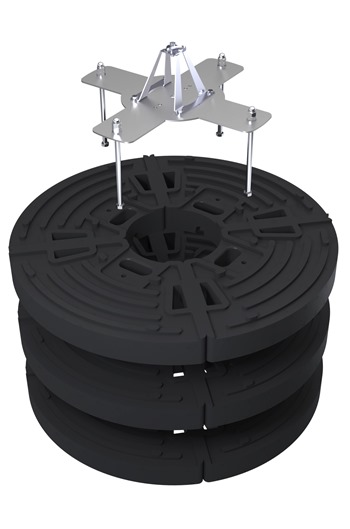

  One of the IM300’s standout features is its modular design, which consists of 12 individual rubber weights and a central anchor post assembly. This smart configuration allows for:-

  • Easy transportation in manageable components
  • Quick assembly and disassembly without the need for cranes, hoists, or any specialised lifting equipment
  • Efficient storage and relocation, especially beneficial for mobile workforces or contractors

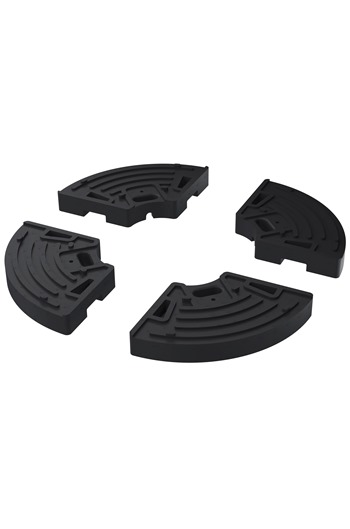

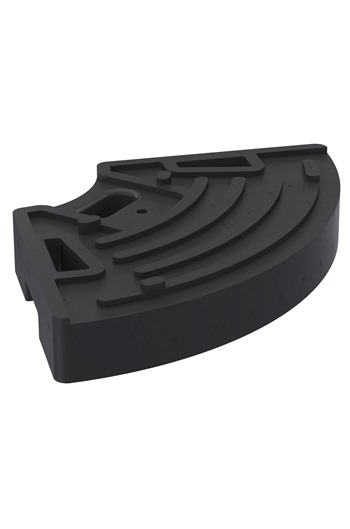

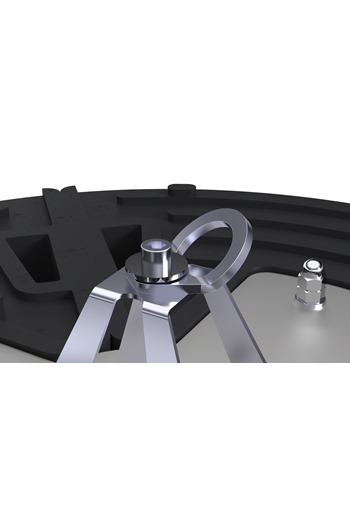

  Each rubber weight is 22kg, enabling manual handling by trained personnel, while the post and connecting plate weigh just 9kg, keeping the system practical and convenient

  The IM300 is designed for use by a single person for either:-

  • Fall Arrest (Protection) — to stop a fall safely if it occurs
  • Work Restraint — to prevent a worker from reaching an area where a fall could happen

  It is suitable for use on flat roofs with a maximum pitch of 5° and is fully certified to EN 795:2012 (Type E), meeting strict European safety standards

  Please Note: The IM300 is only suitable for use on roofing surfaces covered with PVC membrane or bitumen. It is not approved for use on metal roofing or other surface types

  Key Features

  ---

  • Max user weight: 100kg
  • User capacity: 1 person
  • Conformity: EN795:2012
  • Total weight: 270kg
  • Rubber weights: 12 x 22kg
  • Anchor post & plate: 9kg
  • Overall width: 1130mm
  • Height to top of weights: 300mm
  • Height to top of anchor point: 445mm
  • Weather resistance: -20°/+70°
  • Fully certified
  • Made in the EU

  Key Benefits

  ---

  • No need for roof penetration, preserving waterproofing integrity
  • Portable and reusable, ideal for contractors or maintenance teams
  • Simple setup, reducing downtime and labour costs
  • Rugged and weather-resistant, suitable for year-round outdoor use

  Ensure your team works safely and efficiently at height with the IM300 Portable Anchor Device — a reliable, certified fall protection solution for modern roofing environments
