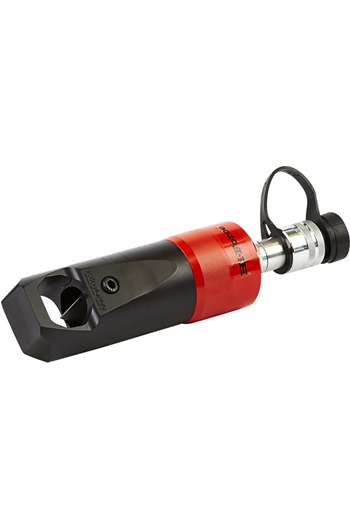

Hi-Force NS104 Hydraulic Nut Splitter 17-32mm

More From This Brand

Add to New List

• Product Info

• Hi-Force NS104 17-32mm Hydraulic Nut Splitter

  Single acting, spring assisted return

  Angled body design for increased clearance on flanges and flat surfaces

  High quality steel construction

  Suitable for splitting nuts up to RC44 hardness

  Designed to fit on all API and ANSI flanges

  Offers ideal ‘cold cut’ solution for applications where ‘hot work’ permits are not allowed

  Steel linkage keeps blade cutting edge parallel to the nut throughout the splitting process

  Compact and easy to use

  Optional 360˚ positional swivel coupling for fitment in confined spaces

  Model: NS104

  Capacity: 16.3tonne

  Oil capacity: 46cm³

  Hexagon AF size: 17-32mm

  Stud bolt thread size: M10-M22

  Weight: 4kg

  Note: NS nut splitters are for use on heavy duty nuts, where the nut height is equal to or greater than two-thirds of the blade length of the tool being used

  Please contact us for discount on this product



• Specifications

• Additional Information

  Data Sheet
• Price Breaks
• Hi-Force NS104 17-32mm Hydraulic Nut Splitter (Net Weight Per Item: 4.00kg):

  Quantity:

  1+

  (£2,052.00 inc VAT)
