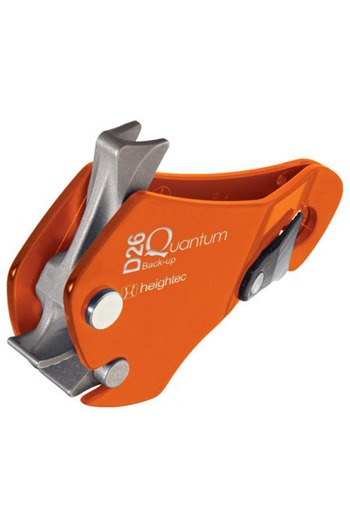

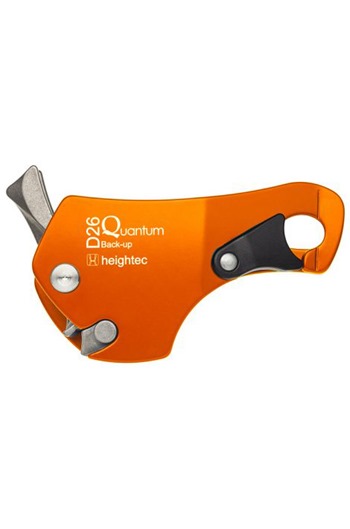

Heightec QUANTUM D26 Rope Access Back-Up Device

More From This Brand

Add to New List

• Product Info

• Heightec QUANTUM D26 Rope Access Back-Up Device

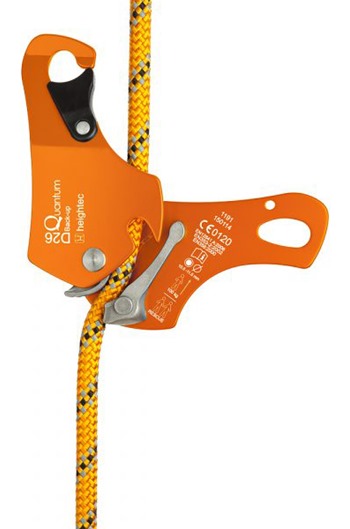

  The QUANTUM rope access back up device arrests a 2 person fall without damaging the rope. The unique cam grips the rope in two places (patented) preventing damage associated with the single loading point found on other devices

  The QUANTUM has minimum slippage during arrest therefore minimising fall distance without damaging the rope sheath. Can be used on all rope types including old or dirty ropes

  The opening catch means the device does not need to be detached from the lanyard to insert or remove rope. This not only simplifies the operation but also removes the risk of dropped objects during mid rope manoeuvres

  The cam prevents rope damage so no additional shock absorber is necessary. The QUANTUM can be attached to harness via cowstail or short webbing link

  The maximum lanyard length 0.45 m up to a fall factor of 2 or lanyard length 0.9 m which has up to a fall factor 1. Does not require additional energy absorber

  All component parts are visible and accessibly, making the device easy to inspect, clean and maintain

  The QUANTUM contains high strength alloy with stainless steel friction surfaces for reduced wear and consistent performance

  Suitable for two person rescue

  Features:-

  • Suitable for 2 person rescue
  • Doesn't damage the rope sheath - even on old or dirty rope
  • Minimum slippage during arrest on all rope types minimises fall distance
  • Opening catch allows easy attachment/detachment from rope at any point without risk of dropping device
  • Does not require additional energy absorber
  • Can be used with cowstail
  • All parts visible for ease of inspection and maintenance
  • High strength alloy with stainless steel friction surfaces
  • Individually marked for traceability

  Specifications:-

  • Sizing: Rope diameter 10.5mm - 11.5mm
  • Material: Aluminium and stainless steel
  • EN Mass Test: 100kg
  • Loading: 100/200kg SWL. Suitable for two person rescue
  • Weight: 0.35 kg
  • Conformity: EN353-2, EN12841A
• Specifications

• Additional Information

  Data Sheet DOC Instruction Manual
