Heightec D701 TORNADO Lifting & Lowering Device

More From This Brand

Add to New List

• Product Info

• Heightec D701 TORNADO Lifting & Lowering Device

  For controlled lifting and lowering of light or medium loads

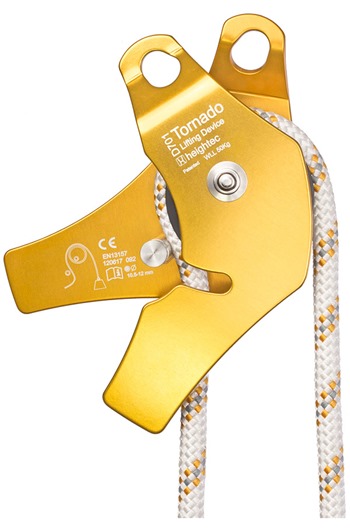

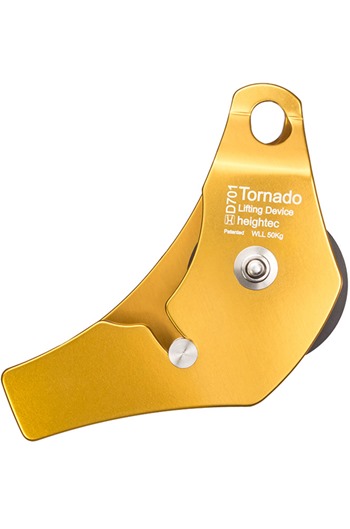

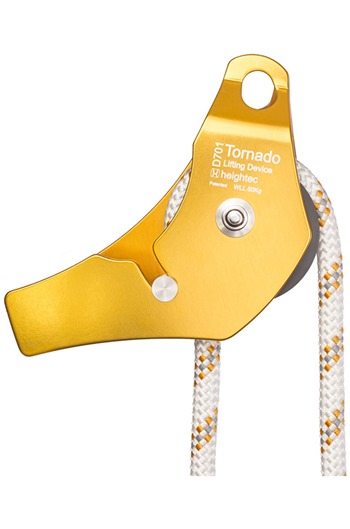

  The TORNADO is a lifting & lowering device with a locking cam for use on kernmantle rope

  The one way bearing in the main cam allows it to rotate freely when lifting but lock when lowering

  Functions as a pulley when lifting for minimum friction and provides friction for controlled lowering

  Controlled lifting is a widespread activity in all work at height and rescue

  With its smooth running one way bearing, the TORNADO lifting and lowering device is a light and versatile addition to any lifting system

  Operation of this device is simple – pull the tail end of rope to lift, raise the body of the device to lower

  The rope can be installed while the device is connected to the anchor point to reduce the risk of dropping

  Uses:-

  • Raising loads
  • Lowering loads
  • Positioning loads
  • Backing up ‘endless loop’ hand hauling systems
  • Can also be used in compound pulley systems to increase mechanical advantage.

  Designed for loads up to 50 kg

  All lifting products are marked with working load limits and certified

  Features:-

  • One way sealed bearing system
  • Controlled lifting and lowering
  • Backing up 'endless loop'
  • Anodised aluminium construction
  • Locks when released

  Specifications-

  • Sizing: 10.5-12mm rope
  • Material: Stainless steel, nylon, aluminium
  • EN Mass Test: 50kg
  • Loading: 50kg SWL
  • Weight: 0.652kg
  • Conformity: CE EN 13157

• Specifications

• Additional Information

  Data Sheet Instruction Manual User Guide
• Price Breaks
• Heightec D701 TORNADO Lifting & Lowering Device (Net Weight Per Item: 0.66kg):

  Quantity:

  1+

  (£208.74 inc VAT)
