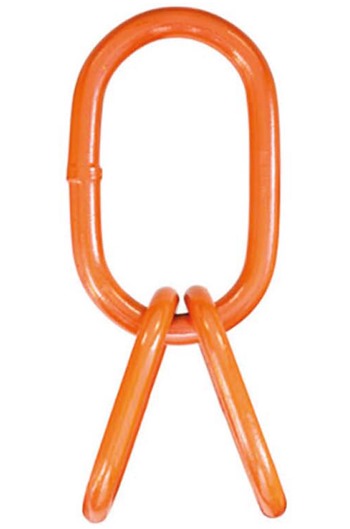

• HA Oversized Quad Assemblies

  The HA range of Grade 8 master links and quad assemblies are widely used for offshore rigging and lifting sets for containers and are the industry leaders globally based on the following:-

  • Product available in diameters from 16mm up to 90mm and working load limits from 4.1 tonnes to 150 tonnes
  • The links are manufactured from triple alloy steel in accordance with EN1677, which includes individually proof load tested to 2.5 times working load limit and 100% MPI
  • MPF (Manufacturing Proof Force): 2.5 x 9.81 x Working Load Limit (kN) (min.)
  • BF (Break Force): WLL x Factor of Safety
  • WLL (Working Load Limit) (tonne) @ 45° to vertical
  • Factor of Safety: 5 : 1
  • Embossing: as per Description column and Batch Number
  • Design air temperature -40° min.
  • Average impact energy (charpy) 42 Joules minimum imp

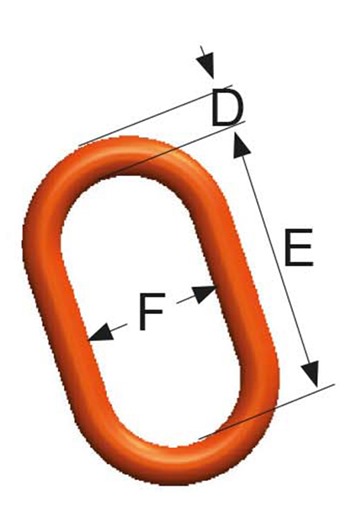

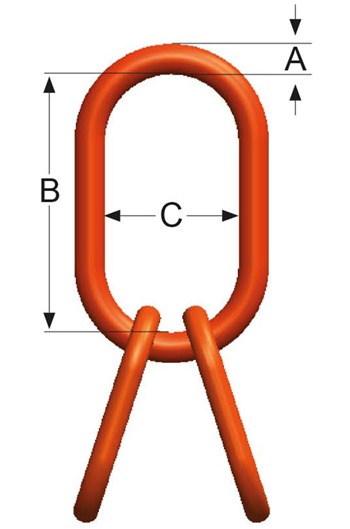

  Please see attached data sheet for loading chart and dimensions

• Specifications

• Additional Information

  Data Sheet
• Price Breaks
• HA16QA Oversize Quad Assembly 4.1tonne (Net Weight Per Item: 1.62kg):

  Quantity:

  1+

  ($47.17)
  HA23QA Oversize Quad Assembly 7tonne (Net Weight Per Item: 5.22kg):

  Quantity:

  1+

  ($74.76)
  HA25QA Oversize Quad Assembly 9.3tonne (Net Weight Per Item: 6.05kg):

  Quantity:

  1+

  ($83.49)
  HA26QA Oversize Quad Assembly 14.5tonne (Net Weight Per Item: 5.89kg):

  Quantity:

  1+

  ($94.37)
  HA32QA Oversize Quad Assembly 19tonne (Net Weight Per Item: 10.92kg):

  Quantity:

  1+

  ($128.97)
  HA36QA Oversize Quad Assembly 26tonne (Net Weight Per Item: 12.35kg):

  Quantity:

  1+

  ($164.78)
  HA40QA Oversize Quad Assembly 30.5tonne (Net Weight Per Item: 18.50kg):

  Quantity:

  1+

  ($251.69)
  HA45QA Oversize Quad Assembly 40tonne (Net Weight Per Item: 25.09kg):

  Quantity:

  1+

  ($346.08)
  HA50QA Oversize Quad Assembly 51tonne (Net Weight Per Item: 40.89kg):

  Quantity:

  1+

  ($498.07)
  HA65QA Oversize Quad Assembly 75tonne (Net Weight Per Item: 66.10kg):

  Quantity:

  1+

  ($1,126.15)
