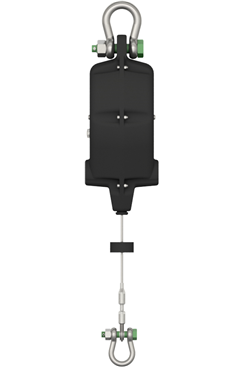

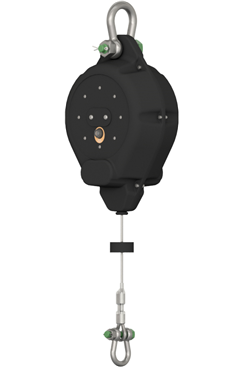

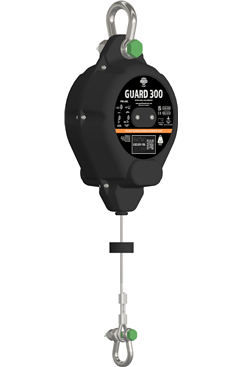

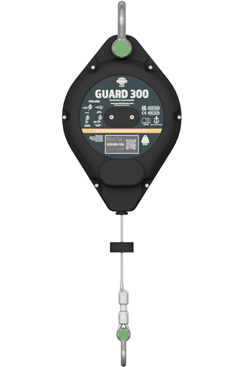

Guard 300kg Load Arrestor 10mtr

More From This Brand

Add to New List

• Product Info

• Guard 300kg Load Arrestor 10mtr

  Guard load arrestors are heavy-duty fall load arrest blocks for protecting equipment that is suspended at height

  Load arrestors provide a secondary safety back-up for overhead loads, used in conjunction with a primary lifting device or support, such as a hoist or fixed anchorage. If the primary support fails, the load arrestor will automatically stop the load from falling, thereby preventing damage to the load and, more importantly, protecting people below

  Guard load arrestors have a high-strength retractable rope that extracts and retracts, following the movement of the load. This means Guards can be fitted to equipment that needs to be moved (dynamic loads), as well as to non-moving (static) loads

  Guard load arrestors are used extensively in industry, car production lines, material handling & lifting, pillar lifts, theatres, stage production, nuclear power stations, sound systems, chandelier fitting, sports halls, and many more applications

  See attached CAD drawing for dimensions

  Features:-

  • Manufactured in the UK
  • 300kg SWL
  • Integrated shock absorption minimises damage
  • Fall indicator lens for easy monitoring
  • High grade galvanised steel rope & shackle (Stainless Steel available)
  • Colour: Black
  • Model: GUARD300-10G
  • Weight: 12kg
  • CE certified
  • Conforms to European Directive 2006/42/EC
• Specifications

• Additional Information

  Instruction Manual Industrial Brochure CAD Drawing
• Price Breaks
• Guard 300kg Load Arrestor 10mtr (Net Weight Per Item: 12.00kg):

  Quantity:

  1+

  (£732.26 inc VAT)
