Globestock 20mtr G.Winch Tripod & Winch Kit

More From This Brand

Add to New List

• Product Info

• Globestock 20mtr G.Winch Tripod & Winch Kit

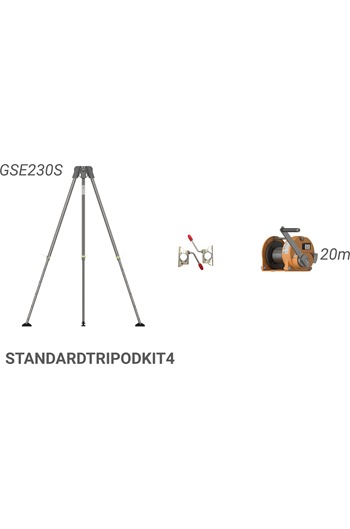

  This 20mtr Tripod and Winch Kit comprises of the following:-

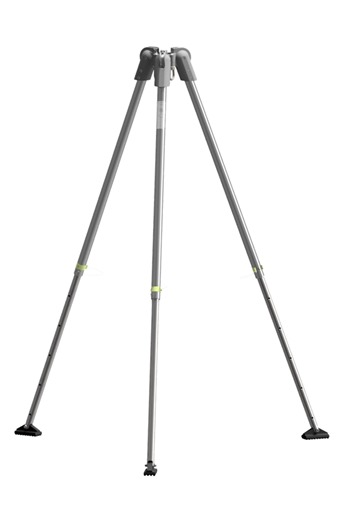

  GSE230S G.Tripod Confined Space Access Tripod

  The G.Tripod is a quality anchorage device that is both durable and versatile. It is designed to provide a secure and stable anchorage for confined space access and down-hole applications

  This Tripod has been manufactured using tubular aluminium for lightness and long term durability. The legs are telescopic and can be adjusted to allow safe use on uneven surfaces. The legs fold easily to aid transport and storage of the tripod. Rubber cup feet ensure stability of the G.Tripod in a wide variety of working environments

  Features

  • Tubular aluminium (robust and lightweight)
  • Max overall height: 2.3mtr
  • Spans up to 1.75m diameter aperture
  • Simple folding design
  • Maximum working load: 200kg
  • Weight: 18kg (excl. brackets)
  • CE certified, fully tested to European standards
  • Conforms to EN795

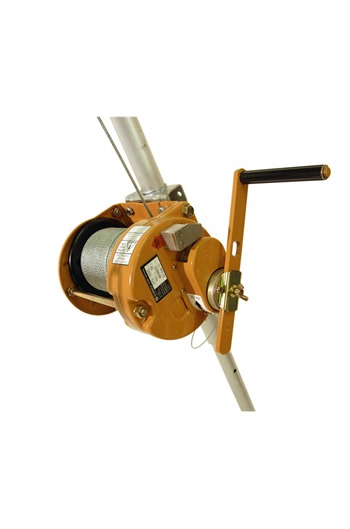

  G.Winch 250kg Man Riding Winch 20mtr

  The G.Winch is a manually operated winch designed specifically for the routine raising or lowering of personnel. The G.Winch can be used either for rescue purposes or day to day personnel lifting. The G.Winch is ideal for use in confined space operations and can be fitted to the G.Tripod quickly and easily

  The G.Winch has a high mechanical efficiency and a light, smooth action, making lifting easy

  Features

  • Anti-run brake
  • Gear ratio 1:8.9 (for easy personnel lifting, 50mm retrieval per rotation)
  • 250kg MWL
  • Cable length: 20mtrs
  • Galvanised steel cable with auto-lock karabiner (stainless steel rope available, please contact us for details)
  • Weight: 17.5kg

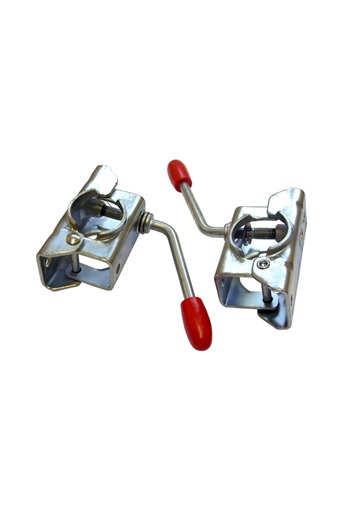

  • Can be mounted to G.Tripod via brackets
  • CE certified
  • Conforms to European Directive 2006/42/EC



• Specifications

• Additional Information

  Tripod Instructions Winch Instructions Tripod Data Sheet
