ERRS 25tonne Remote Ratchet Release Shackle 250mm Throat Depth

More From This Brand

Add to New List

• Product Info

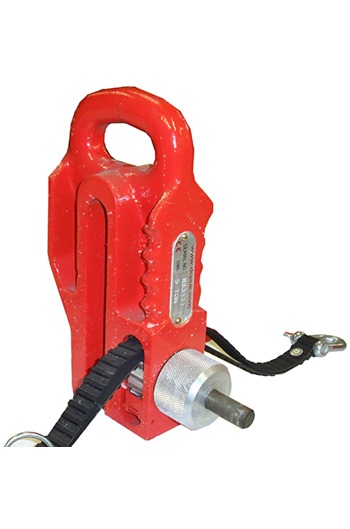

• ERRS 25tonne Remote Ratchet Release Shackle 250mm Throat Depth

  This robust Lifting Shackle was contractor designed and developed over many years of site use and abuse. The use of these shackles compliments the “Feet on the Ground” approach to steel erection and pile installation

  There is no need for site operatives to go into a dangerous position to release the lifting attachment.  The shackle is stiffened to resist spreading of the forks when lifting at 90° to the axis of the lift (see “Safety Check List”)

  The Ratchet Shackle is designed for lifting steel through standard bolt holes or other units of lift having a suitable hole through which the pin can be conveniently and safely engaged

  *** 40ton Bow Shackles can be supplied to suit - please contact us for a price ***

  Part number: 6961A/A

  Capacity: 25tonne

  Throat depth: 250mm

  Weight: 48kg

  *** See attached Instruction manual for full dimensions ***

  Features:-

  • Robust high strength cast steel body
  • Pin mechanism concealed for maximum protection
  • Pin mechanism easily detachable for maintenance
  • Can be used for lifting columns, pipe piles, sheet piles & steel fabrications
  • Heavy web stiffening to withstand side lift (i.e. 90° to the axis) imposed when lifting from the horizontal. (See “Safety Check List” for correct working practice)
  • Independently proof load tested to twice Safe Working Load. Test certificates are supplied with each shackle
  • Super safe design which avoids accidental release
  • Positive pin release at the proper time
• Price Breaks
• ERRS 25tonne Remote Ratchet Release Shackle 250mm Throat Depth (Net Weight Per Item: 48.00kg):

  Quantity:

  1+

  (£4,306.78 inc VAT)
