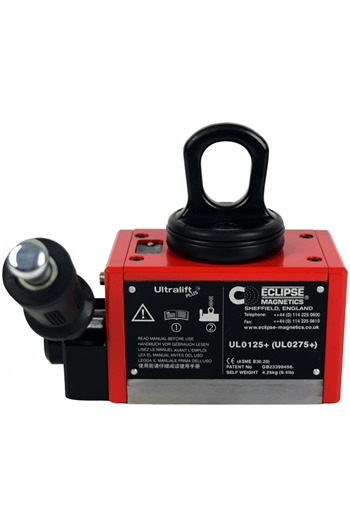

Eclipse UL0125 Ultralift PLUS 125kg Lifting Magnet

More From This Brand

Add to New List

• Product Info

• ECLIPSE UL0125+ ULTRALIFT PLUS 125kg LIFTING MAGNET

  The Ultralift Plus range of manual lifters provides the safest magnetic lifting available.  This range of lifters offers excellent performance to weight ratio.  This is achieved using high-energy neodymium magnets, arranged in an efficient magnetic circuit, to give  a superb holding force, providing a safe, reliable lift

  The Ultralift Plus is the only permanently  magnetic lifting magnet to be supplied with a 'safety shim'.  The 'safety shim' allows the user to undertake a safety test prior to the lift.  This is fast, effctive and guarantees  a safe lift factor of 3:1

  Safety interlock prevents the accidentally switching the magnet off.  Once under load, the interlock mechanism prevents the operating handle being moved to the off position

  Hand break release means the magnet can be easily released by one hand

  Suitable for ferrous sheet/plate and round bar

  Perfect for use in machine shops, fabrication shops, steel stockholders and steel manufacturers

  Benefits:-

  • Easy to install
  • Simple one man operation
  • No power required
  • Load surface not marked
  • High performance magnet material providing high performance at a lower weight
  • Save space as access is only needed to the top of the load
  • 3 safety mechanisms ensure safe lifting

  Model: UL0125

  Capacity: 125kg

  Dimensions: 155mm x 69mm x 212mm

  Weight: 4kg



• Specifications

• Additional Information

  Data Sheet Instructions for Safe Use
• Price Breaks
• Eclipse UL0125 Ultralift PLUS 125kg Lifting Magnet (Net Weight Per Item: 4.00kg):

  Quantity:

  1+

  (£393.88 inc VAT)
