CAMLOK BTG Concrete Pipe Lifting Clamps 3000kg

More From This Brand

Add to New List

• Product Info

• CAMLOK BTG Concrete Pipe Lifting Clamps 3000kg

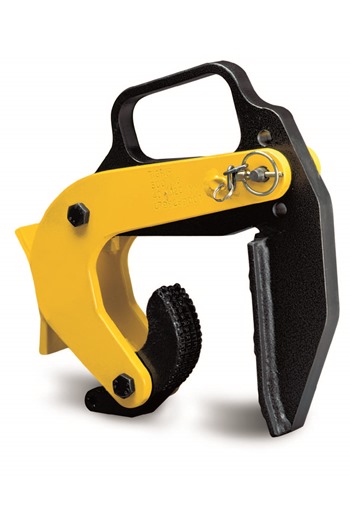

  The BTG Concrete Pipe Lifting Clamps are sold in sets of three, and they come complete with a 3-legged Chainsling (the working load limits shown are based on a set of three Clamps)

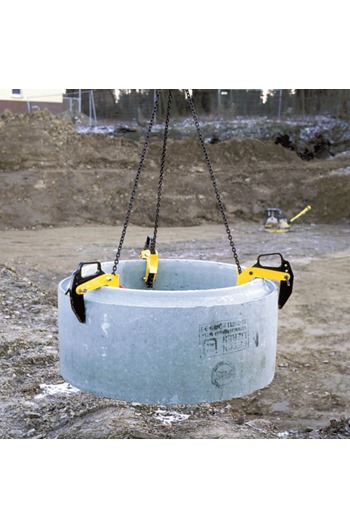

  They are designed for the vertical transportation of concrete pipe sections with a diameter of up to 2000mm

  Attachment and removal of the Clamps from the pipes is extremely easy due to the simple and straightforward design

  For concrete pipes according to DIN 4034

  Features:-

  • Solid design
  • Safety factor 4:1
  • Simple and safe handling
  • Large jaw capacity
  • Service friendly
  • For the toughest operating conditions

  Specifications:-

  • Model: BTG3000/3
  • WLL: 3000kg (based on set of three Clamps)
  • Jaw capacity: 50-180mm
  • Mouth depth: 245mm
  • Pressure line: 175mm
  • Chain diameter: 10mm
  • Total weight: 60kg
• Specifications

• Additional Information

  Data Sheet
• Price Breaks
• CAMLOK BTG Concrete Pipe Lifting Clamps 3000kg (Net Weight Per Item: 60.00kg):

  Quantity:

  1+

  (£1,341.97 inc VAT)
