ActionRam Hydraulic Telescopic Low Height Pad Jack 11.1-100tonne

More From This Brand

Add to New List

• Product Info

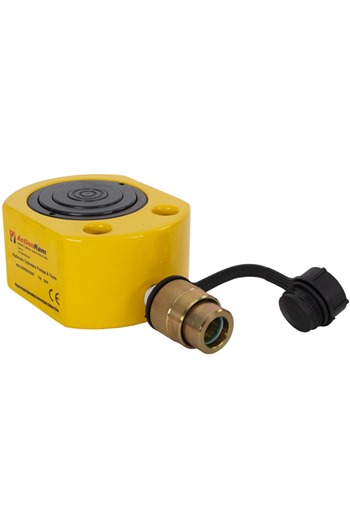

• The ActionRam HHYG-100D Hydraulic Telescopic Low Height Pad Jack is a compact, high-performance lifting solution designed for precision tasks in tight and confined spaces. Whether you’re aligning machinery, positioning equipment, or securing heavy tools, this jack offers the power and reliability needed in industrial, construction, and maintenance applications

  Key Features

  ---

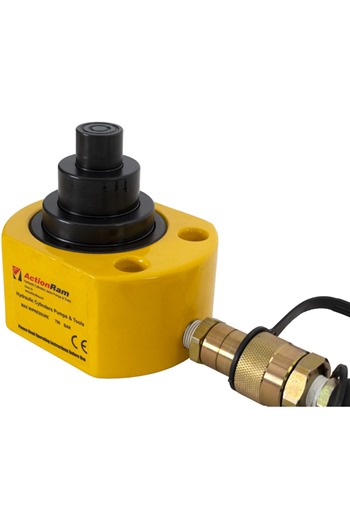

  • Three-Stage Telescopic Lift: The jack features a three-stage hydraulic lift that provides a progressive lifting stroke:-
  • Stage 1: Lifts up to 100.2tonne with a 15mm stroke
  • Stage 2: Lifts up to 30.9tonne with a 30mm stroke
  • Stage 3: Lifts up to 11.1tonne with a 24mm stroke
  • Total stroke: 69mm, allowing flexibility in varying lift requirements
  • Low Profile Design: With a closed height of just 93mm, this jack is engineered for use in areas with limited vertical clearance, such as under heavy machinery or inside compact mechanical spaces
  • Durable Construction: Manufactured with high-grade materials, the cylinder body and ram are chrome plated to resist corrosion and wear, ensuring long service life even in harsh environments
  • High-Pressure Operation: Built to handle pressures up to 700 BAR, this Jack delivers powerful performance in lifting and pressing applications
  • Easy Hydraulic Integration: Comes pre-fitted with a female hydraulic coupling, making it quick and easy to connect to a compatible hydraulic pump
  • Built-In Mounting Holes: Designed for easy and secure mounting, the jack includes holes for permanent or temporary fixture setups
  • Reliable and Safe: Each unit is fully factory tested to ensure maximum safety, performance, and reliability in real-world conditions
  • Warranty Protection: Includes a 12-month manufacturer’s warranty for peace of mind and guaranteed quality assurance

  Specifications

  ---

  • Model: HHYG-100D
  • Lifting capacity: 100.2tonne (stage 1), 30.9tonne (stage 2), 11.1tonne (stage 3)
  • Total stroke: 69mm (15mm stage 1, 30mm stage 2, 24mm stage 3)
  • Open height: 162mm
  • Closed height: 93mm
  • Outer diameter: 188mm x 160mm
  • Oil capacity: 418cc
  • Maximum working pressure: 700 Bar (10,000 PSI)
  • Weight: 16.9kg

  Recommended Accessories

  ---

  • Hydraulic Hand Pump: HHB-700

  Applications

  ---

  • Heavy machinery installation and maintenance
  • Steel structure alignment
  • Bridge bearing replacement
  • Construction jacking tasks
  • Precision lifting in confined areas
  • Workshops
• Specifications
• Brand ActionRam

  Product Weight 16.9kg

  Product Colour Black & Yellow

  W.L.L. 100tonne

  Stroke 69mm

  Oil Capacity 418cc

  Maximum Operating Pressure 700bar

  Open Height 162mm

  Closed Height 93mm

  Acting Single Acting Cylinder

  Available for Hire No

  Warranty 12 Months

  Custom Made Product No

  Included in Return Policy Yes

  Third Party Supplied No

  Additional Information

  Data Sheet Instruction Manual
