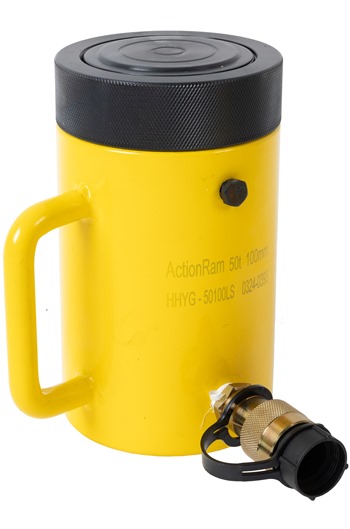

ActionRam 50tonne, 100mm Stroke Hydraulic Lock Nut Cylinder

More From This Brand

Add to New List

• Product Info

• The ActionRam HHYG-50100LS is a high-performance 50tonne Hydraulic Lock Nut Cylinder designed for precision lifting, secure load holding, and compact versatility across a wide range of industrial, construction, and maintenance applications

  Key Features

  ---

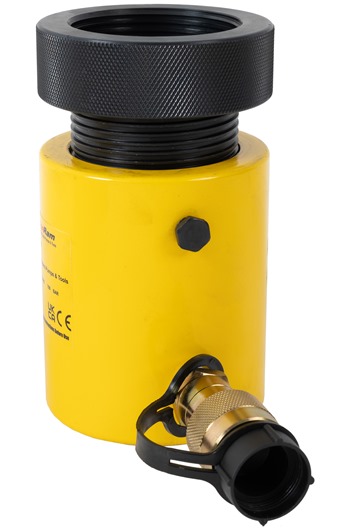

  • Safety Lock Nut for Mechanical Load Holding: Equipped with a heavy-duty threaded lock nut, the cylinder allows for mechanical load holding even after the hydraulic pressure is released—ideal for long-duration or safety-critical lifts
  • Overflow Port as Stroke Limiter: The built-in overflow port prevents over-extension by acting as a stroke limiter, thereby protecting internal components and extending the cylinder's service life
  • Durable Construction: Manufactured with high-grade materials, the cylinder body and ram are chrome plated to resist corrosion and wear, ensuring long service life even in harsh environments
  • High-Pressure Operation: Built to handle pressures up to 700 BAR, this Jack delivers powerful performance in lifting and pressing applications
  • Easy Hydraulic Integration: Comes pre-fitted with a female hydraulic coupling, making it quick and easy to connect to a compatible hydraulic pump
  • Reliable and Safe: Each unit is fully factory tested to ensure maximum safety, performance, and reliability in real-world conditions
  • Warranty Protection: Includes a 12-month manufacturer’s warranty for peace of mind and guaranteed quality assurance

  Specifications

  ---

  • Model: HHYG-50100LS
  • Lifting Capacity: 50tonne
  • Stroke: 100mm
  • Open Height: 314mm
  • Closed Height: 214mm
  • Outer Diameter: 123mm
  • Oil Capacity: 773cc
  • Maximum Working Pressure: 700 Bar (10,000 PSI)
  • Weight: 19kg

  Recommended Accessories

  ---

  • Hydraulic Hand Pump: HHB-700-2000cc

  Applications

  ---

  • Heavy machinery maintenance
  • Construction and infrastructure lifting
  • Steel erection and structural adjustment
  • Mining equipment servicing
  • Bridge support and leveling
  • Steel structure alignment
• Specifications
• Brand ActionRam

  Product Weight 19kg

  Product Colour Black & Yellow

  W.L.L. 50tonne

  Stroke 100mm

  Inside Diameter / Bore 95mm

  Oil Capacity 773cc

  Maximum Operating Pressure 700bar

  Open Height 314mm

  Closed Height 214mm

  Acting Single Acting Cylinder

  Supplied With A Handle

  Available for Hire Yes

  Warranty 12 Months

  Custom Made Product No

  Included in Return Policy Yes

  Third Party Supplied No

  Additional Information

  Data Sheet Instruction Manual
• Price Breaks
• ActionRam 50tonne, 100mm Stroke Hydraulic Lock Nut Cylinder (Net Weight Per Item: 19.00kg):

  Quantity:

  1+

  (£300.68 inc VAT)
