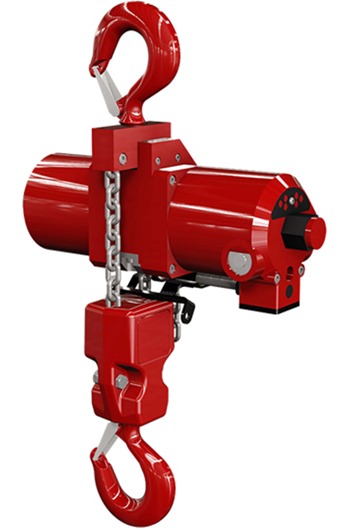

500kg Pneumatic Air Lifting Hoist 3mtr to 10mtr Lifting Height

More From This Brand

Add to New List

• Product Info

• The TCR-500/2 Air Hoist is the ideal choice for lifting applications that require fast lifting speeds, consistant use or simply where there is no access to power

  Powered by a compressed air feed means this Hoist has a 100% duty cycle so is perfect for constant use

  The Hoist is operated by cord control which is attached to a bracket on the Hoist valve

  ATEX zone 2 specification

  Lifting heights: 3mtr to 10mtr (please contact us for longer lifting heights)

  Compact and lightweight body, aluminium housing

  1/2" Filter lubricator regulator c/w guage must be used and can be supplied extra (please contact us for a price)

  Key features

  ---

  • Model: TCR-500/2
  • SWL: 500kg
  • Lifting heights available: 3mtr to 10mtr (please contact us for longer lifting heights)
  • Chain falls: 2
  • Chain size: 4 x 12mm
  • Control type: Cord control (pendant control available - please contact us for details)
  • Lifting speed (full load): 4.6mtrs/min
  • Lifting speed (no load): 9.5mtrs/min
  • Lowering speed (with load): 9mtr/min
  • Air consumption: 13litres/second @ 6.3 Bar
  • Air connection: 1/2" BSP, min hose dia 1/2"
  • Working pressure: 6 Bar
  • Failsafe automatic internal disc brake
  • Upper & lower limit switches
  • ATEX zone 2 specification
  • Fully certified
  • PVC Chainbag included
  • Weight with 3mtr HOL: 9kg
  • Weight per addtional metre HOL: 0.7kg
• Specifications

• Additional Information

  Data sheet
• Price Breaks
• TCR-500/2 500kg x 10mtr Air Hoist (Net Weight Per Item: 13.90kg):

  Quantity:

  1+

  (£3,253.20 inc VAT)
  TCR-500/2 500kg x 3mtr Air Hoist (Net Weight Per Item: 9.00kg):

  Quantity:

  1+

  (£2,923.63 inc VAT)
  TCR-500/2 500kg x 4mtr Air Hoist (Net Weight Per Item: 9.70kg):

  Quantity:

  1+

  (£2,973.56 inc VAT)
  TCR-500/2 500kg x 5mtr Air Hoist (Net Weight Per Item: 10.40kg):

  Quantity:

  1+

  (£3,023.51 inc VAT)
  TCR-500/2 500kg x 6mtr Air Hoist (Net Weight Per Item: 11.10kg):

  Quantity:

  1+

  (£3,073.44 inc VAT)
  TCR-500/2 500kg x 7mtr Air Hoist (Net Weight Per Item: 11.80kg):

  Quantity:

  1+

  (£3,123.37 inc VAT)
  TCR-500/2 500kg x 8mtr Air Hoist (Net Weight Per Item: 12.50kg):

  Quantity:

  1+

  (£3,153.34 inc VAT)
  TCR-500/2 500kg x 9mtr Air Hoist (Net Weight Per Item: 13.20kg):

  Quantity:

  1+

  (£3,203.27 inc VAT)
