500kg High Speed Pneumatic Air Lifting Hoist 3mtr to 10mtr Lifting Height

More From This Brand

Add to New List

• Product Info

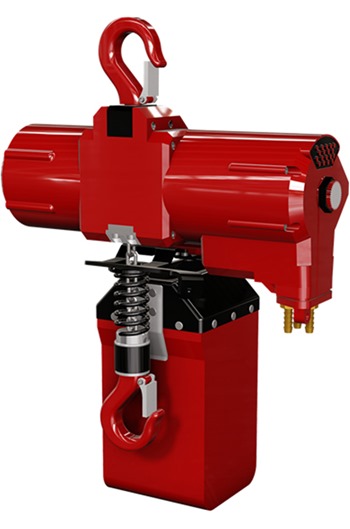

• The TCS-500 500KG SINGLE FALL HIGH-SPEED AIR HOIST is perfect for lifting situations that require fast lifting speeds, constant use, or environments with no power source access.

  This high-speed hoist with a 500kg lifting capacity is powered by a compressed air feed which mean the hoist has a 100% duty cycle, so it’s perfect for constant use. The lifting capacity and duty cycle makes this hoist perfect for lifting loads with ease and precision.

  This high-speed hoist is operated by cord control attached to a bracket on the Hoist valve

  ATEX zone 2 specification

  Lifting heights: 3mtr to 12mtr (please contact us for longer lifting heights)

  Compact and lightweight body, aluminium housing

  1/2" Filter lubricator regulator c/w gauge must be used and can be supplied extra (please contact us for a price)

  Key features

  ---

  • Model: TCS-500
  • SWL: 500kg
  • Lifting heights available: 3mtr to 12mtr (please contact us for longer lifting heights)
  • Chain falls: 1
  • Chain size: 6.3 x 19.1mm
  • Control type: Cord control (pendant control available - please contact us for details)
  • Lifting speed (full load): 17mtrs/min
  • Lifting speed (no load): 33mtrs/min
  • Lowering speed (with load): 34mtr/min
  • Air consumption: 28litres/second @ 6.3 Bar
  • Air connection: 1/2" BSP, min hose dia 1/2"
  • Working pressure: 6 Bar
  • Failsafe automatic internal disc brake
  • Upper & lower limit switches
  • Fully certified
  • PVC Chain bag included
  • Weight with 3mtr HOL: 19kg
  • Weight per additional metre HOL: 0.8kg



• Specifications

• Additional Information

  Data sheet
• Price Breaks
• TCS-500 High Speed 500kg x 10mtr Air Hoist (Net Weight Per Item: 24.60kg):

  Quantity:

  1+

  (£3,687.54 inc VAT)
  TCS-500 High Speed 500kg x 3mtr Air Hoist (Net Weight Per Item: 19.00kg):

  Quantity:

  1+

  (£3,563.94 inc VAT)
  TCS-500 High Speed 500kg x 4mtr Air Hoist (Net Weight Per Item: 19.80kg):

  Quantity:

  1+

  (£3,579.18 inc VAT)
  TCS-500 High Speed 500kg x 5mtr Air Hoist (Net Weight Per Item: 20.60kg):

  Quantity:

  1+

  (£3,593.82 inc VAT)
  TCS-500 High Speed 500kg x 6mtr Air Hoist (Net Weight Per Item: 21.40kg):

  Quantity:

  1+

  (£3,611.40 inc VAT)
  TCS-500 High Speed 500kg x 7mtr Air Hoist (Net Weight Per Item: 22.20kg):

  Quantity:

  1+

  (£3,631.50 inc VAT)
  TCS-500 High Speed 500kg x 8mtr Air Hoist (Net Weight Per Item: 23.00kg):

  Quantity:

  1+

  (£3,647.94 inc VAT)
  TCS-500 High Speed 500kg x 9mtr Air Hoist (Net Weight Per Item: 23.80kg):

  Quantity:

  1+

  (£3,669.18 inc VAT)
  TCS-500 High Speed 500kg x 12mtr Air Hoist (Net Weight Per Item: 26.20kg):

  Quantity:

  1+

  (£4,007.98 inc VAT)
