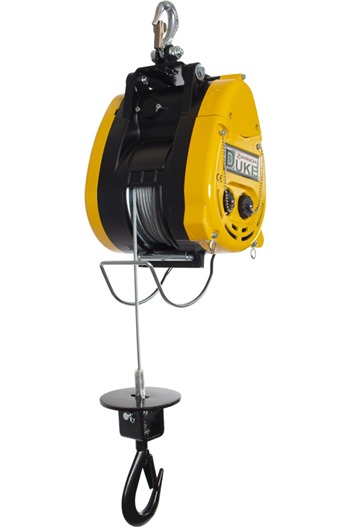

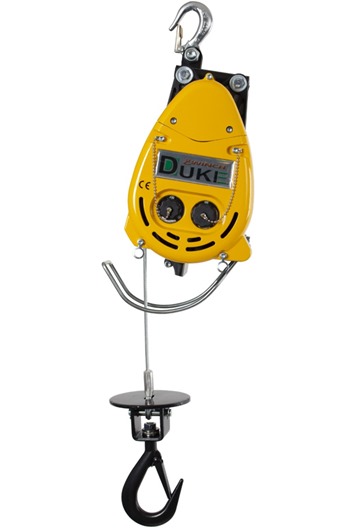

500kg 110volt Wire Rope Hoist x 25mtr c/w Hook Attachment

More From This Brand

Add to New List

• Product Info

• Electric Wire rope hoist, Capacity 500kg

  Suitable for Light Industrial Use

  110 Volt Single Phase

  Height of lift 25mtr

  Speed 11 Metres per minute

  Wire Diameter 6mm

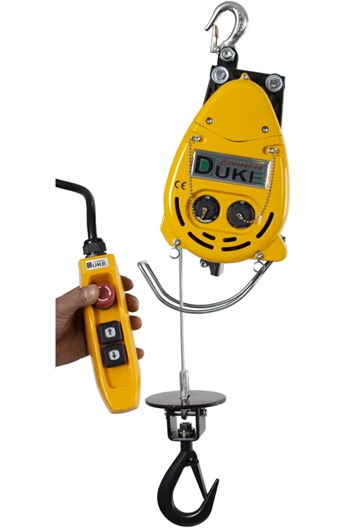

  Pendant control with emergency stop

  Pendant Length 5mtr

  Current at rated load (amp): 13

  Supplied with power lead and plug

  This hoist is compact making it an easy hoist to transport and install

  Fitted with a top hook attachment point for easy fitting onto Clamp or Trolley

  Please note: If attaching this Hoist to a Trolley please do not traverse under load - it is designed for vertical lift only

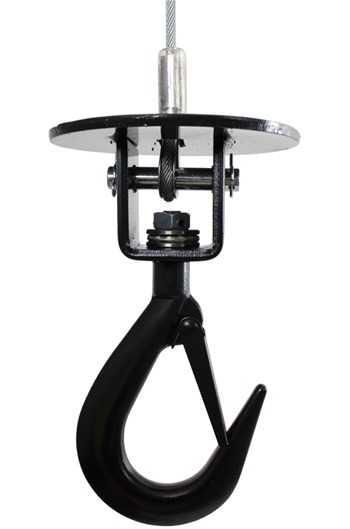

  Lower swivel hook has a large opening to accomadate slings etc and is fitted with a safety catch

  Ideal for construction applications such as scaffolding and general engineering applications

  Upper limit arm protects the hoist from damage

  IP54 Rated for protection from water and dust ingress

  Manufacturer Duke Hoist and Winch

  Dimensions 240mm x 210mm x 670mm

  When powering from a generator you will need a 5.4kw Genset

  Supplied fully tested and certified

  12 Months warranty

• Specifications

• Additional Information

  Operation Manual
• Price Breaks
• Duke DU500a 500kg 110volt Wire Rope Hoist x 25mtr c/w Hook Attachment (Net Weight Per Item: 23.00kg):

  Quantity:

  1+

  (£742.16 inc VAT)
