3tonne Lattice Spreader Beam, Lengths 6-42mtr Available

More From This Brand

Add to New List

• Product Info

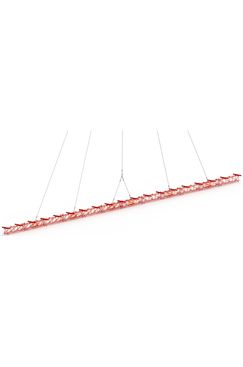

• 3tonne Lattice Spreader Beam 6-42mtr

  Lattice Spreader Beams are ideal for long, light loads where a Spreader Beam is deemed too short for the lift

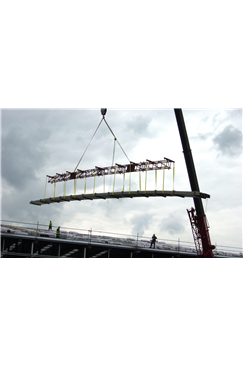

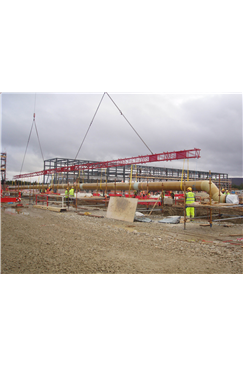

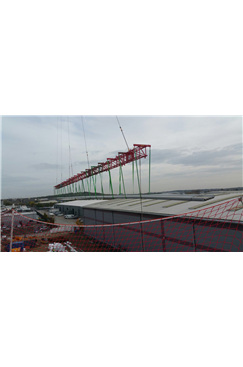

  It is a perfect solution to lift long, light loads that require multiple support points along its length, for example: commercial roof sheet bundles or twin wall drainage pipe that require support along their length to support them whilst being lifted

  The Lattice Spreader Beam has been designed to be lightweight so as to allow for easy transportation and storage as well as being a cost-effective piece of lifting equipment

  Maximum spans from 6mtr up to 42mtr in 3mtr increments are achievable using this system

  Lower support slings can be attached to the frames every 2mtr to ensure a unifomrly distributed load

  Rated at 3tonne WLL - uniformly distributed load only (up to 27mtr span only) - please see attached loading chart

  Available for both hire and sales

  Please contact us for more details
