3ton Long Body Piling Shackle

More From This Brand

Add to New List

• Product Info

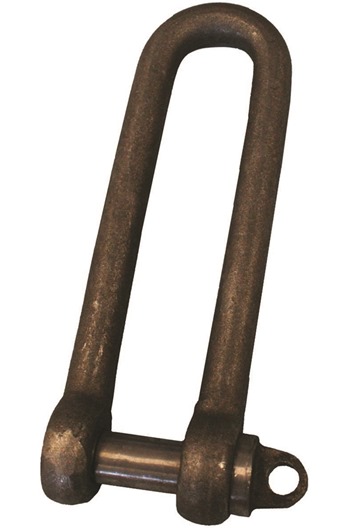

• The 3T Long Body Piling Screw Pin Shackle is a heavy-duty shackle with an elongated body designed to give extra clearance, making it ideal for safely lifting and handling piling materials where standard shackles are too short or restrictive.

  Key Features

  ---

  • Longer body (extended D-shape): Provides extra internal clearance compared to standard bow or D shackles.
  • This extra length allows the shackle to accommodate the wider or thicker sections of piles and lifting chains.
  • Reduces strain and improves efficiency during piling.
• Specifications
• Brand LiftinGear

  Suitable For General Purposes

  Product Weight 2.5kg

  Product Colour Self Colour

  Product Finish Self Colour

  Material Steel

  Internal Length 254mm

  Internal Width 45mm

  Thickness 22mm

  W.L.L. 3Ton

  Safety Factor .

  Shackle Type Piling

  Pin Type Screw Pin

  Pin Diameter 25mm

  Available for Hire Yes

  CE / UKCA Marked Yes

  Conforms to EN Standard .

  Certification Supplied Declaration of Conformity

  Inspection Period (From date of first use) 6 Months

  Custom Made Product No

  Included in Return Policy Yes

  Third Party Supplied No

  Additional Information

  DATA/SPECIFICATION SHEET
• Price Breaks
• 3ton Long Body Piling Shackle (Net Weight Per Item: 2.50kg):

  Quantity:

  1 - 9

  (£24.22 inc VAT)

  Quantity:

  10 - 19

  (£23.61 inc VAT)

  Quantity:

  20 - 29

  (£23.31 inc VAT)

  Quantity:

  30+

  (£23.01 inc VAT)
