300kg Lightweight Aluminium Gantry c/w 6mtr Beam

More From This Brand

Add to New List

• Product Info

•

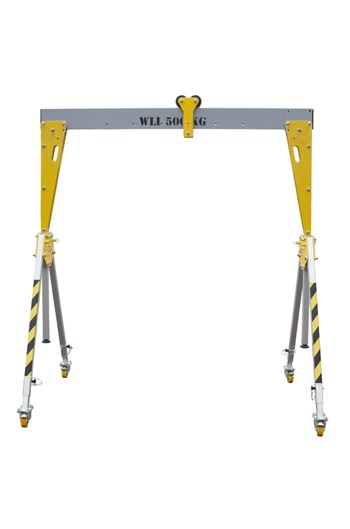

  The Easy-Rig KSB Aluminium Gantry is a complete, lightweight, fully customizable portable device designed for lifting loads.

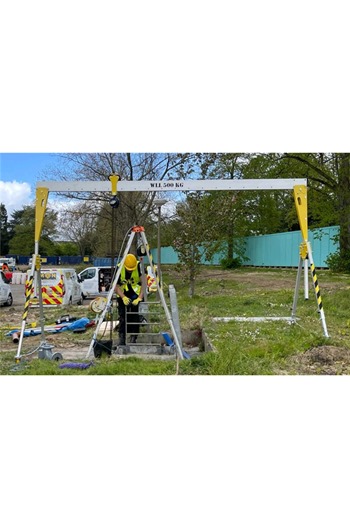

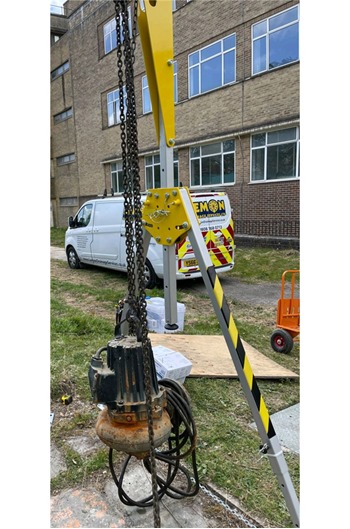

  This Gantry is ideal for lifting applications such as confined spaces, silos, rooftops, lift-shafts, water treatment works, clean environments and many more

  The KSB Gantry is supplied in 3x lightweight parts, a beam and 2x frames for easy handling and transportation

  Another key feature of the KSB Gantry is the option to purchase different length beams (2mtr and 3mtr) to use with the frames

  Fully adjustable in height from 2100 - 3000mm (support height)

  Easy to errect

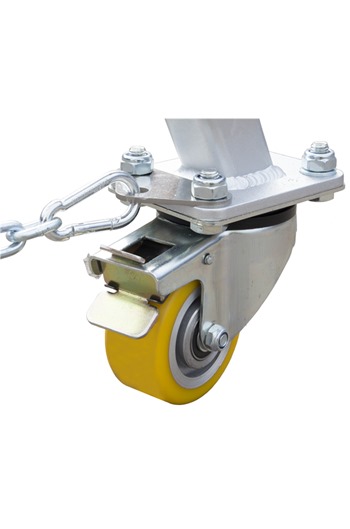

  A-Frames are supplied with 360° castors wih brake

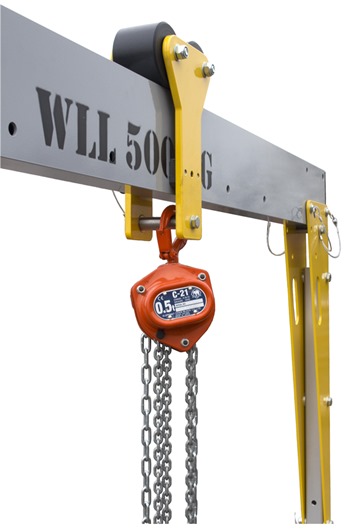

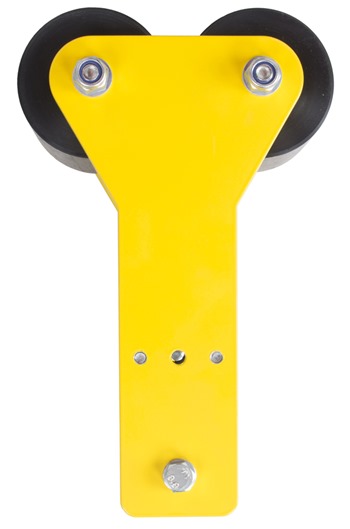

  Beam is supplied with External Trolley for lifting applications

  Can be used with manual Chainblock, Leverhoist, Electric Hoist or RUP502-DT Lifting Winch (sold seperately)

  SWL: 300kg

  Support height: 2100 - 3000mm

  Total beam length: 6mtrs

  Total weight of Gantry: 75kg

  Fully certified and tested



• Specifications

• Additional Information

  Instruction Manual
• Price Breaks
• 300kg Lightweight Aluminium Gantry c/w 6mtr Beam (Net Weight Per Item: 75.00kg):

  Quantity:

  1+

  (£2,937.58 inc VAT)
