2500kg Aluminium Gantry, 5mtr beam, 2200-3600mm

More From This Brand

Add to New List

• Product Info

•  Aluminium Gantry

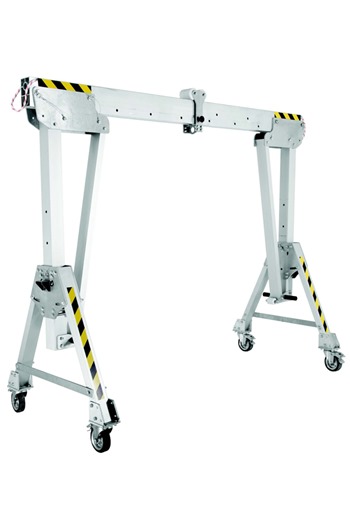

  The Easy-Rig Aluminium Gantry is a complete, lightweight, fully customizable portable device designed for lifting loads

  This Gantry is ideal for lifting applications such as confined spaces, silos, rooftops, lift-shafts, water treatment works, clean environments and many more

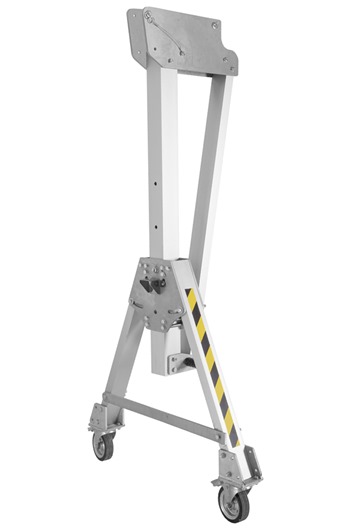

  Supplied as two A-Frames and one Beam, this Gantry is lightweight and easy to transport

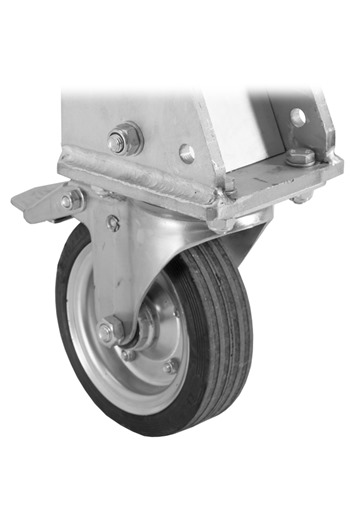

  A-Frames are supplied with 160mm diameter 360° castors wih brake

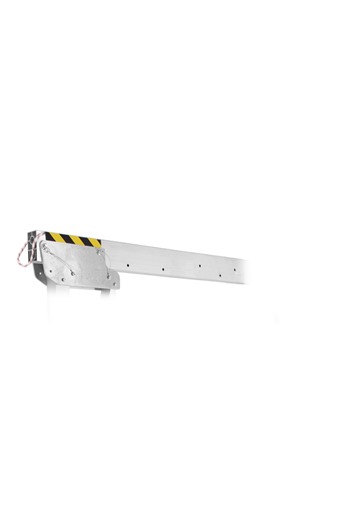

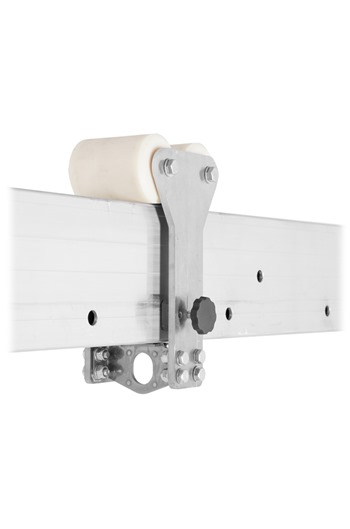

  Beam is supplied with External Trolley for lifting applications and hitch for raising the support

  Beams are interchangeable which means longer or shorted beams can be added (always check the Instruction manual for WLL if the beam is changed over)

  Can be used with manual Chainblock, Leverhoist, Electric Hoist or RUP502-T Lifting Winch

  SWL: 2500kg

  Support height: 2200-3600mm

  Support height increment: 200mm

  Beam length: 5mtrs

  Working span: 3770mm

  Bottom span: 4496mm

  Total weight of Gantry: 166.9kg

  Fully certified and tested

  Full range of additional products available such as Parking Jacks, extra Trolleys - please contact us for more details

  *Dispatched within 72 Hours From Time of Order*

• Specifications

• Additional Information

  Data sheet Data Sheet 2 Instruction Manual
• Price Breaks
• 2500kg Aluminium Gantry, 5mtr beam, 2200-3600mm (Net Weight Per Item: 166.90kg):

  Quantity:

  1+

  (£4,772.96 inc VAT)
