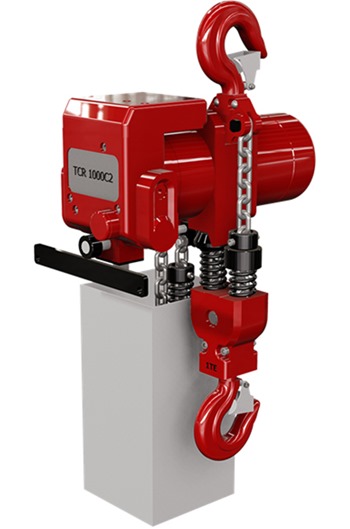

1000kg Pneumatic Air Lifting Hoist 3mtr to 10mtr Lifting Height

More From This Brand

Add to New List

• Product Info

• The TCR-1000/2 Air Hoist is the ideal choice for lifting applications that require fast lifting speeds, consistant use or simply where there is no access to power

  Powered by a compressed air feed means this Hoist has a 100% duty cycle so is perfect for constant use

  The Hoist is operated by cord control which is attached to a bracket on the Hoist valve

  ATEX zone 2 specification

  Lifting heights: 3mtr to 10mtr (please contact us for longer lifting heights)

  Compact and lightweight body, aluminium housing

  1/2" Filter lubricator regulator c/w gauge must be used and can be supplied extra (please contact us for a price)

  Key features

  ---

  • Model: TCR-1000/2
  • SWL: 1000kg
  • Lifting heights available: 3mtr to 10mtr (please contact us for longer lifting heights)
  • Chain falls: 2
  • Chain size: 6.3 x 19.1mm
  • Control type: Cord control (pendant control available - please contact us for details)
  • Lifting speed (full load): 5.3mtrs/min
  • Lifting speed (no load): 9.5mtrs/min
  • Lowering speed (with load): 9mtr/min
  • Air consumption: 13litres/second @ 6.3 Bar
  • Air connection: 1/2" BSP, min hose dia 1/2"
  • Working pressure: 6 Bar
  • Failsafe automatic internal disc brake
  • Upper & lower limit switches
  • ATEX zone 2 specification
  • Fully certified
  • PVC Chainbag included
  • Weight with 3mtr HOL:35.2kg
  • Weight per addtional metre HOL: 1.6kg
• Specifications

• Additional Information

  Data sheet
• Price Breaks
• TCR-1000/2 1000kg x 10mtr Air Hoist (Net Weight Per Item: 46.40kg):

  Quantity:

  1+

  (£4,067.14 inc VAT)
  TCR-1000/2 1000kg x 3mtr Air Hoist (Net Weight Per Item: 35.20kg):

  Quantity:

  1+

  (£3,827.45 inc VAT)
  TCR-1000/2 1000kg x 4mtr Air Hoist (Net Weight Per Item: 36.80kg):

  Quantity:

  1+

  (£3,862.40 inc VAT)
  TCR-1000/2 1000kg x 5mtr Air Hoist (Net Weight Per Item: 38.40kg):

  Quantity:

  1+

  (£3,896.11 inc VAT)
  TCR-1000/2 1000kg x 6mtr Air Hoist (Net Weight Per Item: 40.00kg):

  Quantity:

  1+

  (£3,929.81 inc VAT)
  TCR-1000/2 1000kg x 7mtr Air Hoist (Net Weight Per Item: 41.60kg):

  Quantity:

  1+

  (£3,964.76 inc VAT)
  TCR-1000/2 1000kg x 8mtr Air Hoist (Net Weight Per Item: 43.20kg):

  Quantity:

  1+

  (£3,998.47 inc VAT)
  TCR-1000/2 1000kg x 9mtr Air Hoist (Net Weight Per Item: 44.80kg):

  Quantity:

  1+

  (£4,032.18 inc VAT)
