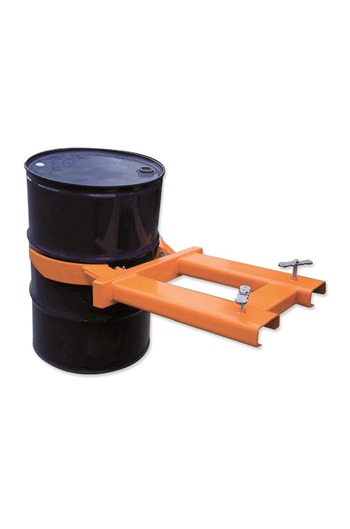

1000kg Double Fork Mounted Steel Drum Lifter

More From This Brand

Add to New List

• Product Info

• The Fork Mounted Drum Lifter provides a simple yet effective method of moving steel drums in a safe and controlled manner which is aimed at the small volume drum user

  Operation:-

  • Position the forks the correct distance apart to locate into fork pockets
  • Fully engage forks into fork pockets and tighten thumb screws fully onto forks
  • Drive towards intended drum with drum lifter arms positioned between middle two ribs on drum
  • Once the tip of the drum lifter arms touch the drum, continue to drive forward whilst lowering mast
  • Once fully engaged remain stationary and raise the mast. The drum lifter will automatically lock underneath the top rib
  • The drum lifter is now ready for use
  • To release the drum, place the drum on the floor, lower the mast and reverse away

  Standard features:-

  • Fully automatic without the driver leaving the safety of his seat
  • Minimum moving parts for low maintenance
  • Zinc plated twist screws for safe attachment to truck
  • Maximum fork section 125 x 50 mm at 408 centres
  • Painted bright orange for safety

  Specifications:-

  • Model: IDL-2
  • Capacity: 1000kg
  • No. of drums: 2
  • Weight: 60kg
• Specifications

• Additional Information

  Data Sheet
• Price Breaks
• 1000kg Double Fork Mounted Steel Drum Lifter (Net Weight Per Item: 60.00kg):

  Quantity:

  1+

  (£1,370.17 inc VAT)
