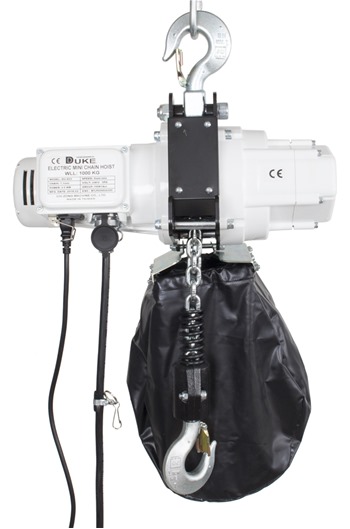

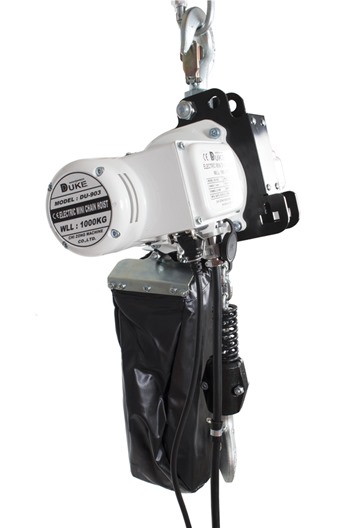

1 Tonne 240Volt Single Fall Electric Chain Hoist

More From This Brand

Add to New List

• Product Info

• This Duke DU903 240v Hoist has a WLL (weight load limit) of 1 tonne. It operates at 240 volts (50hz single phase), making it ideal for light industrial use

  Single fall of Chain

  Various lift heights are available, ranging from 3mtr - 20mtr (select from drop-down list). This product has a lifting speed of 5 metres per minute

  Our 240v hoist is lightweight and compact, making it easy to transport and suitable for a number of different lifting applications. The heavy-duty modular design also makes upkeep of the hoist very easy, while also extending the overall service life of the product

  This hoist comes supplied with:

  • A 3 mtr pendant control with emergency stop
  • A chainbag
  • A power supply cable and plug (5mtrs)
  • Swivel bottom hook

  The duty cycle of the hoist is 30%, which means that it can be used for a maximum of 20 minutes' continued operation in a 1 hour period

  Current at rated load (amp): 9

  The frame and control enclosure provide protection against dust and water ingress.  It has an official enclosure rating of IP54

  The 240v 1 tonne hoist is supplied fully tested and certified, and comes with a 12 month warranty

  Please view our full selection of electric hoists before making your selection. Make sure you have chosen the correct WLL for your needs.

  *Please contact us if you require a longer pendant.



• Specifications
• Brand Duke

  Custom Made Product Yes

  Included in Return Policy No

  Additional Information

  Instruction Manual
• Price Breaks
• 1t 240v 03mtr Single Fall Electric Hoist (Net Weight Per Item: 20.00kg):

  Quantity:

  1+

  (£1,151.60 inc VAT)
  1t 240v 04mtr Single Fall Electric Hoist (Net Weight Per Item: 21.00kg):

  Quantity:

  1+

  (£1,196.40 inc VAT)
  1t 240v 06mtr Single Fall Electric Hoist (Net Weight Per Item: 23.00kg):

  Quantity:

  1+

  (£1,271.63 inc VAT)
  1t 240v 10mtr Single Fall Electric Hoist (Net Weight Per Item: 28.00kg):

  Quantity:

  1+

  (£1,418.27 inc VAT)
  1t 240v 12mtr Single Fall Electric Hoist (Net Weight Per Item: 31.00kg):

  Quantity:

  1+

  (£1,491.60 inc VAT)
  1t 240v 15mtr Single Fall Electric Hoist (Net Weight Per Item: 33.00kg):

  Quantity:

  1+

  (£1,599.48 inc VAT)
  1t 240v 20mtr Single Fall Electric Hoist (Net Weight Per Item: 33.00kg):

  Quantity:

  1+

  (£1,784.12 inc VAT)
